Auto Credential Issue¶
note
API 사용을 위해서는 Access Token이 필요함
- Access Token Example
발급과정(Issue) Workflow¶

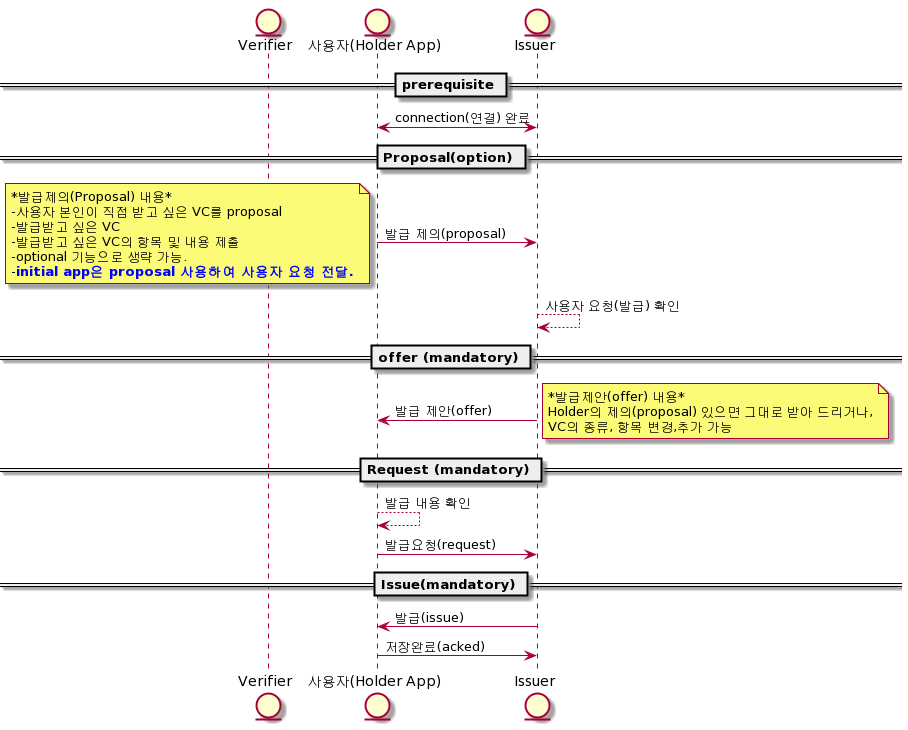

기관(Issuer/Verifier)과 사용자(Holder/Prover)의 VC발급 workflow

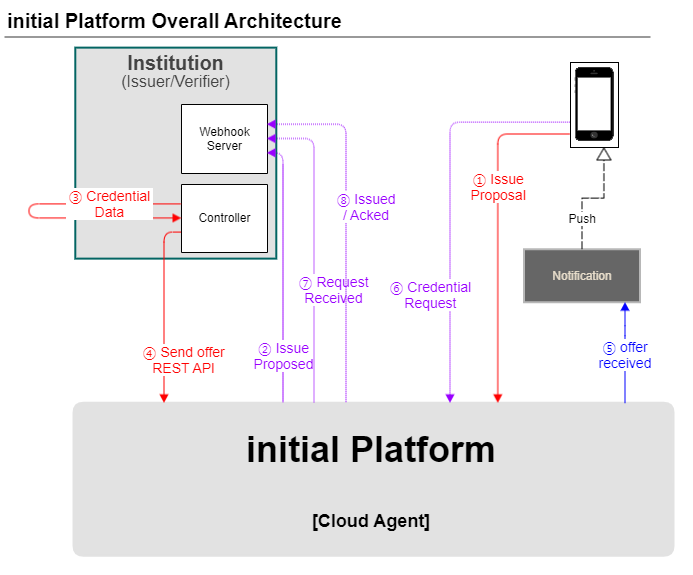

Issue Flow
-
발급(Issue) 진행동안 State는 아래와 같이 변경되면 진행 된다.
- 기관(issuer/verifier) :
proposal_received→offer_sent→request_received→credential_issued→credential_acked - Holder :
proposal_sent→offer_received→request_sent→credential_received→credential_acked
- 기관(issuer/verifier) :
| Topic | State | Description |
|---|---|---|
| issue_credential | proposal_received (Webhook event 전달) |
(issuer)credential proposal 받은 상태 |
| issue_credential | offer_sent (Webhook event 전달) |
(issuer)credential offer 한 상태 |
| issue_credential | offer_received | (holder)offer를 받은 상태 |
| issue_credential | request_sent | (holder) credential을 요청 한 상태 |
| issue_credential | request_received (Webhook event 전달) |
(issuer) Credential 요청을 받은 상태 |
| issue_credential | credential_issued (Webhook event 전달) |
(issuer) Credential을 issue |
| issue_credential | credential_received | (holder) Credential을 받은 상태 |
| issue_credential | credential_acked (Webhook event 전달) |
(holder/issuer) Credential 수취 완료 |
Credential_exchange_id Data Model(Example)¶
- issue_credential 관리를 위해 별도의 identifier인 credential_exchange_id를 제공한다.
- credential_exchange_id는 아래와 같이 connection_id를 포함하여 발급 관련 모든 정보를 포함하고 있다
{
"initiator": "external",
"auto_issue": true,
"trace": false,
"state": "proposal_received",
"credential_proposal_dict": {
"@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id": "33c8e5ff-ab21-45c1-b966-06cead6e0317",
"cred_def_id": "A5EaF6CUiTquuMFysqykmY:3:CL:1614236895:tag.56.42.80"
},
"connection_id": "c9e32cc7-ad4e-4808-8d43-0a6dbadcfbb2",
"thread_id": "33c8e5ff-ab21-45c1-b966-06cead6e0317",
"auto_remove": false,
"credential_exchange_id": "bbf3ec30-f01d-4879-b016-9abc4ce075cb",
"role": "issuer",
"updated_at": "2021-05-26 04:20:47.073303Z",
"created_at": "2021-05-26 04:20:47.073303Z"
}
STEP 0. [필수] Proposal 확인¶
- [Previous Condition] : topic
connection, stateactive - [Action] : 개발 필요
- [Development] : webhook으로 전달되는
proposal_receivedstate 확인 후STEP 1진행
Note
STEP0는 initial app에서 Issue Proposal을 먼저 진행 합니다. 기관사용자는 해당 요청을 Webhook을 통해서 받습니다.
사용자(Holder)가 credential proposal을 요청하면, Webhook을 통해 아래와 같은 event가 전달 된다.
{
"initiator": "external",
"credential_proposal_dict": {
"@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id": "03e19631-26a0-4c06-9a29-35c95766a692",
"cred_def_id": "DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd"
},
"trace": false,
"credential_exchange_id": "148b673e-d506-431a-8063-a70aebdaadfe",
"auto_remove": false,
"connection_id": "85e21c28-342b-406c-9303-69db21cb96d3",
"role": "issuer",
"created_at": "2021-05-18 10:10:43.082572Z",
"auto_issue": true,
"state": "proposal_received",
"updated_at": "2021-05-18 10:10:43.082572Z",
"thread_id": "03e19631-26a0-4c06-9a29-35c95766a692",
"topic": "issue_credential",
"comment": { "free-issue": true }
}
"topic": "issue_credential">> VC 발행 요청"state": "proposal_received">> Proposal 상태"cred_def_id":"CB1f9WKGAJDwUKCT2XEx7o:3:CL:1617870264:9f714e9d-4dfb-4d9f-8c8f-60281c729745">> 사용자가 요청한 VC 정보"connection_id":"0844ebf0-c88f-49cf-9ed0-d0b57cfd9ec8">> 사용자 연결 정보"credential_exchange_id": "148b673e-d506-431a-8063-a70aebdaadfe">> VC발급 진행 Unique ID"comment": { "free-issue": true }>> event등 처리를 위해 특정 정보를 전달.
[참고][Cloud Wallet Holder 전용] Proposal 요청¶
Note
아래는 Holder 전용 Cloud Wallet 사용자 Guide 입니다. 기관 사용자는 Skip 하셔도 됩니다.
Method and Resource¶
POST /issue-credential/send-proposal [Holder 전용] Issuer에게 VC 발급 요청
-
Swagger Document
Parameters¶
-
Query Parameters
KEY Value Required Description
-
Path Variables
KEY Value Required Description -
Body
Parameter content type
application/json
{
"auto_remove": true,
"comment": "string",
"connection_id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
"cred_def_id": "WgWxqztrNooG92RXvxSTWv:3:CL:20:tag" // 발행받고자 하는 VC ID
}
Request Example¶
- Curl
curl -L -X POST 'https://dev-console.myinitial.io/agent/api/issue-credential/send-proposal' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer 5dd1e041-xxxx-xxxx-xxxx-96616886ece4' \
--data-raw '{
"auto_remove": true,
"comment": "string",
"connection_id": "6efb1145-3163-4db1-af8f-57a0acef8086",
"cred_def_id": "WgWxqztrNooG92RXvxSTWv:3:CL:20:tag"
}'
Response example¶
- Response body
{
"connection_id": "6efb1145-3163-4db1-af8f-57a0acef8086",
"credential_exchange_id": "7ca8537e-e412-4dee-a37e-c444d4ae1724",
"created_at": "2021-10-13 15:50:11.817413Z",
"thread_id": "1d095f07-aa47-40ca-ab1d-655f3810f025",
"role": "holder",
"state": "proposal_sent",
"credential_proposal_dict": {
"@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id": "1d095f07-aa47-40ca-ab1d-655f3810f025",
"cred_def_id": "WgWxqztrNooG92RXvxSTWv:3:CL:20:tag",
"comment": "string"
},
"auto_remove": true,
"auto_issue": false,
"updated_at": "2021-10-13 15:50:11.817413Z",
"initiator": "self"
}
Webhook example¶
{
"initiator": "external",
"credential_proposal_dict": {
"@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id": "03e19631-26a0-4c06-9a29-35c95766a692",
"cred_def_id": "DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd"
},
"trace": false,
"credential_exchange_id": "148b673e-d506-431a-8063-a70aebdaadfe",
"auto_remove": false,
"connection_id": "85e21c28-342b-406c-9303-69db21cb96d3",
"role": "issuer",
"created_at": "2021-05-18 10:10:43.082572Z",
"auto_issue": true,
"state": "proposal_received",
"updated_at": "2021-05-18 10:10:43.082572Z",
"thread_id": "03e19631-26a0-4c06-9a29-35c95766a692",
"topic": "issue_credential"
}
- topic :
issue_credential>> VC 발행 요청 event - state :
proposal_received>> Proposal 상태
STEP 1. [필수] 증명서 발급¶
- [Previous Condition] : topic
issue_credential, stateproposal_received
혹은present_proof, stateverified - [Action] : 개발 필요
- [Development] : Send offer API 요청 개발
- Step 0의 Holder로 부터 받은 Proposal의
credential_exchange_id필요 - Data 암호화 송수신 기능 제공
Method and Resource¶
POST /issue-credential/records/{cred_ex_id}/send-offer credential preview를 보내면서 offer.
-
Swagger Document
Parameters¶
-
Query Parameters
KEY Value Required Description
-
Path Variables
KEY Value Required Description cred_ex_id string O Credential exchange identifier
e.g 3fa85f64-5717-4562-b3fc-2c963f66afa6 -
Body
Parameter content type
application/jsonattribute 작성 시 주의 사항
모든 attribute의 값을 입력(발행할 값이 없으면 공백문자 입력) 하지 않으면 Error 발생.
null값을 입력하거나 혹은 Attribute를 선언하지 않으면 오류가 발생함날짜 입력 시 포맷 주의 사항
모든 날짜는 YYYYMMDD(20000101) 형식으로 해야 오류가 발행하지 않음.
YYYY-MM-DD 혹은 YYYY.MM.DD 형식을 사용하면 안됨암호화 지원
개인정보가 포함되는 API 이기 때문에 Body 값을 암호화 요청이 가능. 사용방법
아래 json data를 Encrytion 후
{ encode_data:"[[encrypted data]]" }형태로 API 요청해야 함{ "counter_proposal":{ //cred_def_id : 발급할 Credential ID. STEP0의 Webhook Event를 통해 확인 가능하다. "cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd", "credential_proposal":{ "attributes":[ { "name":"date_of_birth", "value":"20000228" }, { "name":"date_of_test", "value":"20180228'" }, { "name":"english_name", "value":"Kim Initial" }, { "name":"exp_date", "value":"20180228" }, { "name":"korean_name", "value":"김증명" }, { "name":"registration_number", "value":"123456789" }, { "name":"score_of_listening", "value":"445" }, { "name":"score_of_reading", "value":"445" }, { "name":"score_of_total", "value":"990" } ] }, "auto_issue": true, //사용자가 credential request를 하면 자동으로 issue 완료<br>`/issue-credential/records/{cred_ex_id}/issue` 자동 처리 "auto_remove": false, //Credential issue 완료되면 관련 record를 자동 삭제 <br> `/issue-credential/records/{cred_ex_id}/remove` 자동 처리 "comment": "Counter Proposal Send offer Example", "trace": false } }
Request Example¶
- Curl
curl --location --request POST 'https://dev-console.myinitial.io/agent/api/issue-credential/records/d6aa4f24-c082-4443-9f91-2dda87962257/send-offer' \
--header 'Authorization: Bearer 2ca4dd8a-1234-1234-1234-c5fb0286f2cc' \
--header 'Content-Type: application/json' \
--data-raw '{
"counter_proposal":{
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"credential_proposal":{
"attributes":[
{
"name":"date_of_birth",
"value":"20000228"
},
{
"name":"date_of_test",
"value":"20180228"
},
{
"name":"english_name",
"value":"Kim Initial"
},
{
"name":"exp_date",
"value":"20180228"
},
{
"name":"korean_name",
"value":"김증명"
},
{
"name":"registration_number",
"value":"123456789"
},
{
"name":"score_of_listening",
"value":"445"
},
{
"name":"score_of_reading",
"value":"445"
},
{
"name":"score_of_total",
"value":""
}
]
},
"auto_issue": true,
"auto_remove": true,
"comment": "Counter Proposal Send offer Example",
"trace": false
}
}'
Response example¶
- Response body
update 예정
Webhook example¶
Send-offer가 Holder에서 정상적으로 처리되었을 경우 아래와 같은 상태 확인 가능
- topic :
issue_credential - state :
offer_sent
{
"credential_offer_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/offer-credential",
"@id":"72a5fec0-d8e0-4d28-a05a-472c5021702a",
"~thread":{
"thid":"91dcb87c-41e7-4dba-a9f7-f98ba7585fd8"
},
"credential_preview":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":"19780924"
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":"주재현"
},
{
"name":"registration_number",
"value":"123456789-987654321"
},
{
"name":"score_of_listening",
"value":"161"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
},
"offers~attach":[
{
"@id":"libindy-cred-offer-0",
"mime-type":"application/json",
"data":{
"base64":"eyJzY2hlbWFfaWQiOiAiTjZyNG5Md0FrY1lVWDhjOEtiOFVmdToyOkNlcnRpZmljYXRlT2ZUT0VJQzo0LjAiLCAiY3JlZF9kZWZfaWQiOiAiRHJMYlhGU2FvNFZvOGdNZmp4UHhVMTozOkNMOjE2MTc2OTgyMzg6ODFkZjAwMTAtNjJiNC00NWIxLWJkMDAtOGQwYWQ3NDc2·····0MTAzODA4NTE5MDI1NzI5MDYwODg4MTAxMDgyNjcxMTQ0NjAxMzE5ODgyMDk4NDI1NDI3NTIzMDc2NDY3MDc2MzAxNzcwMDU5MjU1ODM0NTgxOTYyMTY0MDE1NzM4NDg4Nzg4NzI3MTIzMjU2Mjc4Mjg5MjQwNjk5NzA0NzE3OTc5ODYyMDM0MjY3NzU0OTM1MzUyNzA2MjM0NjE1MjAzMzM1OTc1NDQ0MTYyMTkwNjY1Nzg0MDk2ODUwNjg4NzA2ODU0NDMxMjA0NjIzMDU4MTc2ODg2Mzg1MzczNzMwNTkzMzY3NTYwNzEyNDE1ODUxMjkwODczMjEzIl1dfSwgIm5vbmNlIjogIjY5MjEwMjkxNDQ2MTQwOTgwNzUyMjI5MiJ9"
}
}
]
},
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"credential_definition_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"connection_id":"97627cc8-1839-45df-9989-c9bcda2f4ce1",
"credential_exchange_id":"26ee0de3-7d1a-44f1-b0a5-9309fcfd7a34",
"created_at":"2021-10-14 01:55:44.830851Z",
"thread_id":"91dcb87c-41e7-4dba-a9f7-f98ba7585fd8",
"role":"issuer",
"state":"offer_sent",
"credential_proposal_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id":"df3639ed-80be-4076-b23f-0d534103e7a2",
"credential_proposal":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":"19780924"
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":"주재현"
},
{
"name":"registration_number",
"value":"123456789-987654321"
},
{
"name":"score_of_listening",
"value":"161"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
},
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"comment":"JJ Test"
},
"trace":false,
"auto_remove":true,
"auto_issue":true,
"updated_at":"2021-10-14 01:56:40.895546Z",
"initiator":"external",
"credential_offer":{
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"nonce":"692102914461409807522292",
"key_correctness_proof":{
"c":"115309207665428406179545994373912181282831545118540014229967271707896224931550",
"xz_cap":"1055572769862663463709934204601954080483898826030879595979074971004206859393782655599324140913902653650398938906681641924390794812738887811895545711063564481179172330881094952438950836326342830845967987855265191783565688169975863324545545315781669024596986257143061525264896458486625431280764566858010248626346811818332553348994255109430053940452222330296721244130109139739905819674198123825423697014194656630395527533035580919935737499589831966659250863798261759416779236747674116899991548520783007432182205649700587358695322105915051483830246135518385554263531337387626704587405669968771421880306850156048748573730575735016160622706605885093644782532647373659196784245832723085213497048989520",
"xr_cap":[
[
"date_of_test",
"1076232159249964734109718589777267462109484070440415691511826521589528195960117006601596499833881106787532908582735685947125303637779749865395973748786845381125614276185776325521284507979022202765015734531668494478627404644674922115351392810935336529179108446362157123315565260725483035159546977982636268273741134447625656913083049471163863325580545751281281707239030011491905375673521635790717301188716989419245594425667897372137887632091257692992002204353172141035532686819956655464274728888166233800730209627627333118372176190108581819028962383487619291845020994081912208148061482241150491798630105559860464292100987650906949548228012908099036234969978091590577056859814205598867632927950715"
],
[
"english_name",
"696411130939580533510436664194526819156095629287412434045238350804750458875252009159837208667096357708273898836774596569571826421416373675758153437224961347803003587328774238645279718011305234430510914339030739772141034937822610601894100092611699051587368572476378066571995197160308770830331651684157422321494210565622254936179050256196395839836450739708603193285896785801340066230480042341954666620701121906593630655998864008598194498052803215598246923716961827765415427467725639778399843178991934315901785927203964183244619307158020733817516419875099846927356800929807208713102941594049577311851970296265305274235642059800993937805593444602673622260362361553200010326744684880113343773224856"
],
[
"exp_date",
"2423650123164905529363621137809723145327867542753048760610730674284755739976356487466267577397713669927824555718078674729329822136623528495004922057741935984832762937882953798007838316207944508000224331385996443269580772498769868565007610503103086465320921094682281609628869906334746079832967350907986925385591867010527607177795249423358544981842772106056300659484323947189052758098052717291821625945625196039363888578326940371229699672363219264534873802852476718738347302929940470298789876886196910464381568220032501183416349848143988173727155194728720864205189777283305349845531272422805228252687727992182026982614462202644856280264034450814786604483296092056699991544749097728868483744446331"
],
[
"score_of_reading",
"2263886014163696590877718819103455141839764106832768596959484972522489575027017888376981568132641923366850648287840153912124367275371474769790500423524604919564238092857224278300534000897636801852705809941046581775589751860522217490645306757391328303319956054118395953114831310842809749975591660215464105580925138260233324059520052466951401028759473645982168188190176228004854475985942016309992878768801954057483746945873570295882488431031166136808624134153820634301438203715228541061843520449836633174699357693505984852565434043129482220741904454080051328338153001196670948990896588307144418334265831459502889939680312534898472645004103285632827560927171404720898851329417605453634831452105880"
],
[
"korean_name",
"1788905130111265904456574740124922396565215354204380449567575199633053127160174234740334169163533234098148466742292392674984412955928295011897914390825366883670704562244019812041523237990926471189078365848488833270311435394026181232864698108211568494413854353359501545597228323807667606753094829953660730021296029619567370219701682829655313153017527838124455789767036252178302629465507426610286364164681495353145251164557082375958197169733253633372741447430255323043278244265461826802697680565168561519779430990470463595586390531041737789913470295057104476365441293493385120339503184843302522455622801999634368420551345290270174238758437586582034974662721295675328742676255863518017012102741754"
],
[
"score_of_total",
"1131408229621120341419714362596397257437010356761970831117159479462644909092607263082728500224663287432793687206924656934623008549461292143349994965014996220549600850171347399425995731869206209723121836146291303852634119993656531379913949985367268418996941292073439590628865049264575374368331684059634116305830878007505464481589097524377731105590524099461218975426677127234408701159721830316170789361477925525097080753114516789767813128041847397430523163733871008006318000394251620704007023311886686489213855362287012519524345918971605022062755150869511036027385123217644754740517125140618879286637752303249386621450313840810601389526460114307239254509987725573400448400489937628720343209395089"
],
[
"registration_number",
"2247001418347582270988729853798416644319473907456862200810923148032570724445989049467408783929525319088796528846074300298169095832008090348765071819903592259054539824107548396054831620156065397353564314075832606210002977414031807190802036614711962753045459302055995482711202476264913729001053742381513627967237847564879310450296522656150932190587089497405772515463146242994444774104882568126760201438615070455178021939652629567700369720831400945670155611556079874020063191648365703561825491872933011142654327815258659117050096588380898686058800908707607049137007238452589439126294577306523377835567636783270433931969907155243881650213552971700040639102264289018157628681046401752955986797933218"
],
[
"date_of_birth",
"1622036361531601912251084820418702891601047782637625175138825572605733390657370425908276847701537598980273604382070456587845182200911550410496021112938116817469328122740343465842145517523068426330797102857174680217730742636280962702678214012212055179781058935253589973057993182294325777377224183992603970408737848265608557819777659529146029917384032844531408647389643826506797896986046661457552175339113532176938328464383201000987343263429069705023059141319585205354277570075181730250883786462786446385160285106726367318312569623394375087504400808279887917603118803819491422372508163349572000020578024494244592303918714890726682610072788038285788003590191639827913464095669159219768260642494767"
],
[
"score_of_listening",
"1202043186541000077067318894665944481489668135022134314443404430396286899460712716296756410314379809012416941049287328163346631773596012029555142378784580119596344455118735926511923407535605952885020325475956351925453264790226559686460721445639509824176151295241844261424864916894010262080314423453156496740761901948323994732613276093756472383348333300782668595685697525956942522257006337554210743319850506407215432626560027267548352737536010704228980076926718519569644900600383189049477625864687011926440746320618810644754245154650520218349376058025805455653220023443923915170028308491915730954834751706334279481947387284970643049438626372659069200620136961620807736320266508935608778881128405"
],
[
"master_secret",
"75058462139856704125654397494254199874577168133517578504814054588705403376146531180516305111045748586657850639948462898548309628681224543786671184769254238939580650621034360364097978468638962680004448821823177525719718499766886648783478506991347684473040764192386010504203539146018733495985123079975653588128984124853671845331254670474499065010197308533728047777092359450483262763540721978696281706440363534215729437045900413478850968906786814103808519025729060888101082671144601319882098425427523076467076301770059255834581962164015738488788727123256278289240699704717979862034267754935352706234615203335975444162190665784096850688706854431204623058176886385373730593367560712415851290873213"
]
]
}
},
"topic":"issue_credential"
}

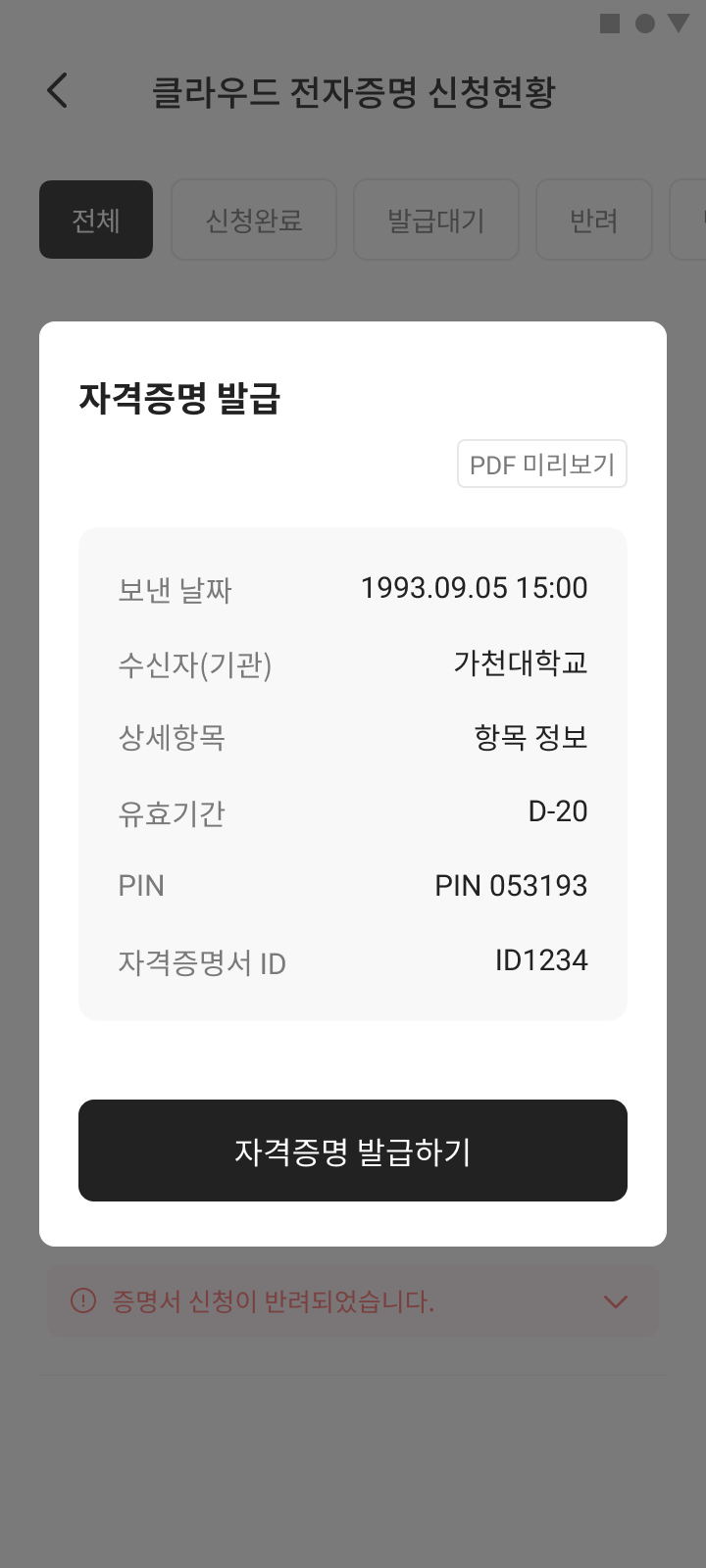

[참고] 발급요청이 정상 처리되었을 경우 사용자에게 실제 표시되는 화면
Note
STEP2는 Holder가 initial app 일 경우 SDK에서 자동으로 처리됨.
initial App 사용자 화면에는 발급하기전 미리보기 화면이 출력
STEP 2. Webhook 확인¶
- [Previous Condition] : topic
issue_credential, stateoffer_sent - [Action] : webhook으로 전달되는 event 확인
- [Development] : 없음
Note
STEP 2 과정은 Cloud Agent에서 자동으로 처리됩니다. 기관은 Webhook Message를 참고만 하시면 됩니다.
아래와 같이 Webhook event로 차례로 전달 된다.
request_received → credential_issued → credential_acked
Webhook example¶
- topic :
issue_credential - state :
request_received
{
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"auto_issue":true,
"trace":false,
"credential_offer_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/offer-credential",
"@id":"98b5ffd6-b7e4-4c56-a58d-68a11dc21f97",
"~thread":{
"thid":"217c6a09-eb41-4f0e-bad2-981be4622759"
},
"offers~attach":[
{
"@id":"libindy-cred-offer-0",
"mime-type":"application/json",
"data":{
"base64":"eyJzY2hlbWFfaWQiOiAiTjZyNG5Md0FrY1lVWDhjOEtiOFVmdToyOkNlcnRpZmljYXRlT2ZUT0VJQzo0LjAiLCAiY3JlZF9kZWZfaWQiOiAiRHJMYlhGU2FvNFZvOGdNZmp4UHhVMTozOkNMOjE2MTc2OTgyMzg6ODFkZjAwMTAtNjJiNC00NWIxLWJkMDAtOGQwYWQ3NDc2MmZkIiwgImtleV9jb3JyZWN0bmVzc19wcm9vZiI6IHsiYyI6ICIxMTUzMDkyMDc2NjU0Mjg0MDYxNzk1NDU5OTQzNzM5MTIxODEyODI4MzE1NDUxMTg1NDAwMTQyMjk5NjcyNzE3MDc4OTYyMjQ5MzE1NTAiLCAieHpfY·····A0MjAzNTM5MTQ2MDE4NzMzNDk1OTg1MTIzMDc5OTc1NjUzNTg4MTI4OTg0MTI0ODUzNjcxODQ1MzMxMjU0NjcwNDc0NDk5MDY1MDEwMTk3MzA4NTMzNzI4MDQ3Nzc3MDkyMzU5NDUwNDgzMjYyNzYzNTQwNzIxOTc4Njk2MjgxNzA2NDQwMzYzNTM0MjE1NzI5NDM3MDQ1OTAwNDEzNDc4ODUwOTY4OTA2Nzg2ODE0MTAzODA4NTE5MDI1NzI5MDYwODg4MTAxMDgyNjcxMTQ0NjAxMzE5ODgyMDk4NDI1NDI3NTIzMDc2NDY3MDc2MzAxNzcwMDU5MjU1ODM0NTgxOTYyMTY0MDE1NzM4NDg4Nzg4NzI3MTIzMjU2Mjc4Mjg5MjQwNjk5NzA0NzE3OTc5ODYyMDM0MjY3NzU0OTM1MzUyNzA2MjM0NjE1MjAzMzM1OTc1NDQ0MTYyMTkwNjY1Nzg0MDk2ODUwNjg4NzA2ODU0NDMxMjA0NjIzMDU4MTc2ODg2Mzg1MzczNzMwNTkzMzY3NTYwNzEyNDE1ODUxMjkwODczMjEzIl1dfSwgIm5vbmNlIjogIjQwMzY5NjI4ODU0OTA3MzE0OTQ0NDMxNSJ9"
}
}
],
"credential_preview":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":"null"
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":"null"
},
{
"name":"registration_number",
"value":"null"
},
{
"name":"score_of_listening",
"value":"401"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
}
},
"credential_offer":{
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"nonce":"403696288549073149444315",
"key_correctness_proof":{
"c":"115309207665428406179545994373912181282831545118540014229967271707896224931550",
"xz_cap":"1055572769862663463709934204601954080483898826030879595979074971004206859393782655599324140913902653650398938906681641924390794812738887811895545711063564481179172330881094952438950836326342830845967987855265191783565688169975863324545545315781669024596986257143061525264896458486625431280764566858010248626346811818332553348994255109430053940452222330296721244130109139739905819674198123825423697014194656630395527533035580919935737499589831966659250863798261759416779236747674116899991548520783007432182205649700587358695322105915051483830246135518385554263531337387626704587405669968771421880306850156048748573730575735016160622706605885093644782532647373659196784245832723085213497048989520",
"xr_cap":[
[
"date_of_test",
"1076232159249964734109718589777267462109484070440415691511826521589528195960117006601596499833881106787532908582735685947125303637779749865395973748786845381125614276185776325521284507979022202765015734531668494478627404644674922115351392810935336529179108446362157123315565260725483035159546977982636268273741134447625656913083049471163863325580545751281281707239030011491905375673521635790717301188716989419245594425667897372137887632091257692992002204353172141035532686819956655464274728888166233800730209627627333118372176190108581819028962383487619291845020994081912208148061482241150491798630105559860464292100987650906949548228012908099036234969978091590577056859814205598867632927950715"
],
[
"english_name",
"696411130939580533510436664194526819156095629287412434045238350804750458875252009159837208667096357708273898836774596569571826421416373675758153437224961347803003587328774238645279718011305234430510914339030739772141034937822610601894100092611699051587368572476378066571995197160308770830331651684157422321494210565622254936179050256196395839836450739708603193285896785801340066230480042341954666620701121906593630655998864008598194498052803215598246923716961827765415427467725639778399843178991934315901785927203964183244619307158020733817516419875099846927356800929807208713102941594049577311851970296265305274235642059800993937805593444602673622260362361553200010326744684880113343773224856"
],
[
"exp_date",
"2423650123164905529363621137809723145327867542753048760610730674284755739976356487466267577397713669927824555718078674729329822136623528495004922057741935984832762937882953798007838316207944508000224331385996443269580772498769868565007610503103086465320921094682281609628869906334746079832967350907986925385591867010527607177795249423358544981842772106056300659484323947189052758098052717291821625945625196039363888578326940371229699672363219264534873802852476718738347302929940470298789876886196910464381568220032501183416349848143988173727155194728720864205189777283305349845531272422805228252687727992182026982614462202644856280264034450814786604483296092056699991544749097728868483744446331"
],
[
"score_of_reading",
"2263886014163696590877718819103455141839764106832768596959484972522489575027017888376981568132641923366850648287840153912124367275371474769790500423524604919564238092857224278300534000897636801852705809941046581775589751860522217490645306757391328303319956054118395953114831310842809749975591660215464105580925138260233324059520052466951401028759473645982168188190176228004854475985942016309992878768801954057483746945873570295882488431031166136808624134153820634301438203715228541061843520449836633174699357693505984852565434043129482220741904454080051328338153001196670948990896588307144418334265831459502889939680312534898472645004103285632827560927171404720898851329417605453634831452105880"
],
[
"korean_name",
"1788905130111265904456574740124922396565215354204380449567575199633053127160174234740334169163533234098148466742292392674984412955928295011897914390825366883670704562244019812041523237990926471189078365848488833270311435394026181232864698108211568494413854353359501545597228323807667606753094829953660730021296029619567370219701682829655313153017527838124455789767036252178302629465507426610286364164681495353145251164557082375958197169733253633372741447430255323043278244265461826802697680565168561519779430990470463595586390531041737789913470295057104476365441293493385120339503184843302522455622801999634368420551345290270174238758437586582034974662721295675328742676255863518017012102741754"
],
[
"score_of_total",
"1131408229621120341419714362596397257437010356761970831117159479462644909092607263082728500224663287432793687206924656934623008549461292143349994965014996220549600850171347399425995731869206209723121836146291303852634119993656531379913949985367268418996941292073439590628865049264575374368331684059634116305830878007505464481589097524377731105590524099461218975426677127234408701159721830316170789361477925525097080753114516789767813128041847397430523163733871008006318000394251620704007023311886686489213855362287012519524345918971605022062755150869511036027385123217644754740517125140618879286637752303249386621450313840810601389526460114307239254509987725573400448400489937628720343209395089"
],
[
"registration_number",
"2247001418347582270988729853798416644319473907456862200810923148032570724445989049467408783929525319088796528846074300298169095832008090348765071819903592259054539824107548396054831620156065397353564314075832606210002977414031807190802036614711962753045459302055995482711202476264913729001053742381513627967237847564879310450296522656150932190587089497405772515463146242994444774104882568126760201438615070455178021939652629567700369720831400945670155611556079874020063191648365703561825491872933011142654327815258659117050096588380898686058800908707607049137007238452589439126294577306523377835567636783270433931969907155243881650213552971700040639102264289018157628681046401752955986797933218"
],
[
"date_of_birth",
"1622036361531601912251084820418702891601047782637625175138825572605733390657370425908276847701537598980273604382070456587845182200911550410496021112938116817469328122740343465842145517523068426330797102857174680217730742636280962702678214012212055179781058935253589973057993182294325777377224183992603970408737848265608557819777659529146029917384032844531408647389643826506797896986046661457552175339113532176938328464383201000987343263429069705023059141319585205354277570075181730250883786462786446385160285106726367318312569623394375087504400808279887917603118803819491422372508163349572000020578024494244592303918714890726682610072788038285788003590191639827913464095669159219768260642494767"
],
[
"score_of_listening",
"1202043186541000077067318894665944481489668135022134314443404430396286899460712716296756410314379809012416941049287328163346631773596012029555142378784580119596344455118735926511923407535605952885020325475956351925453264790226559686460721445639509824176151295241844261424864916894010262080314423453156496740761901948323994732613276093756472383348333300782668595685697525956942522257006337554210743319850506407215432626560027267548352737536010704228980076926718519569644900600383189049477625864687011926440746320618810644754245154650520218349376058025805455653220023443923915170028308491915730954834751706334279481947387284970643049438626372659069200620136961620807736320266508935608778881128405"
],
[
"master_secret",
"75058462139856704125654397494254199874577168133517578504814054588705403376146531180516305111045748586657850639948462898548309628681224543786671184769254238939580650621034360364097978468638962680004448821823177525719718499766886648783478506991347684473040764192386010504203539146018733495985123079975653588128984124853671845331254670474499065010197308533728047777092359450483262763540721978696281706440363534215729437045900413478850968906786814103808519025729060888101082671144601319882098425427523076467076301770059255834581962164015738488788727123256278289240699704717979862034267754935352706234615203335975444162190665784096850688706854431204623058176886385373730593367560712415851290873213"
]
]
}
},
"initiator":"external",
"state":"request_received",
"role":"issuer",
"created_at":"2021-08-06 04:43:14.481031Z",
"updated_at":"2021-08-06 04:43:36.253615Z",
"connection_id":"d57cee53-6d64-444d-aa27-faec84d25c46",
"auto_remove":true,
"credential_proposal_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id":"915f582a-1703-404d-976a-3a7fdd50ac1f",
"comment":"JJ Test",
"credential_proposal":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":"null"
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":"null"
},
{
"name":"registration_number",
"value":"null"
},
{
"name":"score_of_listening",
"value":"401"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
},
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd"
},
"credential_request":{
"prover_did":"97tE6e4v2K4vu1qjTWCFNg",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"blinded_ms":{
"u":"46831997328364301643560418398490601107404402418858671578137178928437446873320264586769819734807592006981843643797048636176545942127626113581637633992678985809986539645073812116060735925040113989648014245325647116102311574929207191431153445351031881214362589607267342496329275279987379019841630697479605548573417452012941350282137790586135125417975457165516639878476191673523942783822974022772301207764127613893393119636018290950386848847603439063968839433929801323062062302134399119778461191205998350172502435589826107416478327124481726806932655767216483793975040135290729197346256729889112751201367369575399155096029",
"ur":"1 0F8566D0279976405786E75C4A6C55488578ADDAEA35B161CCA50A7C3BF45F76 1 12B89567472ECE510DF69F2E8208D4B32467740DC7942DA436BBA71E1AC385FE 2 095E45DDF417D05FB10933FFC63D474548B7FFFF7888802F07FFFFFF7D07A8A8",
"hidden_attributes":[
"master_secret"
],
"committed_attributes":{
}
},
"blinded_ms_correctness_proof":{
"c":"79491694275957467808663629857140069543040376706162470853242122646197063169925",
"v_dash_cap":"1435122002388533961027134840159500466316860333018095865228711993601047581332651750648078735798372784951671417597347488299580664488139988252974317356152922955508177537347153034916967960466880091097323588335739644113576341875606149325572872657807648450848862334571776241826695852478818185193649035809144532141522939442397385211676304172432050461183359300378609457138799743916183219947105371468310249097326871657166141245084029345180165327788167467034165019571462953242409072307876551061122242242516171023616917326212952490302476722937997150723212278225162787655593641181435922421638437076431287624156790626819428454807130945831358912551350425322605790927087848774628193538637712182142787574161794595598240100786038052508",
"m_caps":{
"master_secret":"2319623634283540032715827729851714852924001696855662216781048128776680239347185112688128861808689679482193826453156849849945078040235212522290996342499868425107046831682663417157"
},
"r_caps":{
}
},
"nonce":"629297215437572416239898"
},
"thread_id":"217c6a09-eb41-4f0e-bad2-981be4622759",
"credential_definition_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"credential_exchange_id":"2aa723e2-16f8-45ff-9c29-0b88ce6dbf09",
"topic":"issue_credential"
}
request_received는 발급 진행 과정 중 하나로, 진행사항 참고만 하면 된다.
- topic :
issue_credential - state :
credential_issued
{
"revoc_reg_id":"DrLbXFSao4Vo8gMfjxPxU1:4:DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd:CL_ACCUM:0fb34de2-af15-4a12-96b4-617df0604620",
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"auto_issue":true,
"trace":false,
"credential_offer_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/offer-credential",
"@id":"98b5ffd6-b7e4-4c56-a58d-68a11dc21f97",
"~thread":{
"thid":"217c6a09-eb41-4f0e-bad2-981be4622759"
},
"offers~attach":[
{
"@id":"libindy-cred-offer-0",
"mime-type":"application/json",
"data":{
"base64":"eyJzY2hlbWFfaWQiOiAiTjZyNG5Md0FrY1lVWDhjOEtiOFVmdToyOkNlcnRpZmljYXRlT2ZUT0VJQzo0LjAiLCAiY3JlZF9kZWZfaWQiOiAiRHJMYlhGU2FvNFZvOGdNZmp4UHhVMTozOkNMOjE2MTc2OTgyMzg6ODFkZjAwMTAtNjJiNC00NW·····TQwNzIxOTc4Njk2MjgxNzA2NDQwMzYzNTM0MjE1NzI5NDM3MDQ1OTAwNDEzNDc4ODUwOTY4OTA2Nzg2ODE0MTAzODA4NTE5MDI1NzI5MDYwODg4MTAxMDgyNjcxMTQ0NjAxMzE5ODgyMDk4NDI1NDI3NTIzMDc2NDY3MDc2MzAxNzcwMDU5MjU1ODM0NTgxOTYyMTY0MDE1NzM4NDg4Nzg4NzI3MTIzMjU2Mjc4Mjg5MjQwNjk5NzA0NzE3OTc5ODYyMDM0MjY3NzU0OTM1MzUyNzA2MjM0NjE1MjAzMzM1OTc1NDQ0MTYyMTkwNjY1Nzg0MDk2ODUwNjg4NzA2ODU0NDMxMjA0NjIzMDU4MTc2ODg2Mzg1MzczNzMwNTkzMzY3NTYwNzEyNDE1ODUxMjkwODczMjEzIl1dfSwgIm5vbmNlIjogIjQwMzY5NjI4ODU0OTA3MzE0OTQ0NDMxNSJ9"
}
}
],
"credential_preview":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":""
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":""
},
{
"name":"registration_number",
"value":""
},
{
"name":"score_of_listening",
"value":"401"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
}
},
"credential_offer":{
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"nonce":"403696288549073149444315",
"key_correctness_proof":{
"c":"115309207665428406179545994373912181282831545118540014229967271707896224931550",
"xz_cap":"1055572769862663463709934204601954080483898826030879595979074971004206859393782655599324140913902653650398938906681641924390794812738887811895545711063564481179172330881094952438950836326342830845967987855265191783565688169975863324545545315781669024596986257143061525264896458486625431280764566858010248626346811818332553348994255109430053940452222330296721244130109139739905819674198123825423697014194656630395527533035580919935737499589831966659250863798261759416779236747674116899991548520783007432182205649700587358695322105915051483830246135518385554263531337387626704587405669968771421880306850156048748573730575735016160622706605885093644782532647373659196784245832723085213497048989520",
"xr_cap":[
[
"date_of_test",
"1076232159249964734109718589777267462109484070440415691511826521589528195960117006601596499833881106787532908582735685947125303637779749865395973748786845381125614276185776325521284507979022202765015734531668494478627404644674922115351392810935336529179108446362157123315565260725483035159546977982636268273741134447625656913083049471163863325580545751281281707239030011491905375673521635790717301188716989419245594425667897372137887632091257692992002204353172141035532686819956655464274728888166233800730209627627333118372176190108581819028962383487619291845020994081912208148061482241150491798630105559860464292100987650906949548228012908099036234969978091590577056859814205598867632927950715"
],
[
"english_name",
"696411130939580533510436664194526819156095629287412434045238350804750458875252009159837208667096357708273898836774596569571826421416373675758153437224961347803003587328774238645279718011305234430510914339030739772141034937822610601894100092611699051587368572476378066571995197160308770830331651684157422321494210565622254936179050256196395839836450739708603193285896785801340066230480042341954666620701121906593630655998864008598194498052803215598246923716961827765415427467725639778399843178991934315901785927203964183244619307158020733817516419875099846927356800929807208713102941594049577311851970296265305274235642059800993937805593444602673622260362361553200010326744684880113343773224856"
],
[
"exp_date",
"2423650123164905529363621137809723145327867542753048760610730674284755739976356487466267577397713669927824555718078674729329822136623528495004922057741935984832762937882953798007838316207944508000224331385996443269580772498769868565007610503103086465320921094682281609628869906334746079832967350907986925385591867010527607177795249423358544981842772106056300659484323947189052758098052717291821625945625196039363888578326940371229699672363219264534873802852476718738347302929940470298789876886196910464381568220032501183416349848143988173727155194728720864205189777283305349845531272422805228252687727992182026982614462202644856280264034450814786604483296092056699991544749097728868483744446331"
],
[
"score_of_reading",
"2263886014163696590877718819103455141839764106832768596959484972522489575027017888376981568132641923366850648287840153912124367275371474769790500423524604919564238092857224278300534000897636801852705809941046581775589751860522217490645306757391328303319956054118395953114831310842809749975591660215464105580925138260233324059520052466951401028759473645982168188190176228004854475985942016309992878768801954057483746945873570295882488431031166136808624134153820634301438203715228541061843520449836633174699357693505984852565434043129482220741904454080051328338153001196670948990896588307144418334265831459502889939680312534898472645004103285632827560927171404720898851329417605453634831452105880"
],
[
"korean_name",
"1788905130111265904456574740124922396565215354204380449567575199633053127160174234740334169163533234098148466742292392674984412955928295011897914390825366883670704562244019812041523237990926471189078365848488833270311435394026181232864698108211568494413854353359501545597228323807667606753094829953660730021296029619567370219701682829655313153017527838124455789767036252178302629465507426610286364164681495353145251164557082375958197169733253633372741447430255323043278244265461826802697680565168561519779430990470463595586390531041737789913470295057104476365441293493385120339503184843302522455622801999634368420551345290270174238758437586582034974662721295675328742676255863518017012102741754"
],
[
"score_of_total",
"1131408229621120341419714362596397257437010356761970831117159479462644909092607263082728500224663287432793687206924656934623008549461292143349994965014996220549600850171347399425995731869206209723121836146291303852634119993656531379913949985367268418996941292073439590628865049264575374368331684059634116305830878007505464481589097524377731105590524099461218975426677127234408701159721830316170789361477925525097080753114516789767813128041847397430523163733871008006318000394251620704007023311886686489213855362287012519524345918971605022062755150869511036027385123217644754740517125140618879286637752303249386621450313840810601389526460114307239254509987725573400448400489937628720343209395089"
],
[
"registration_number",
"2247001418347582270988729853798416644319473907456862200810923148032570724445989049467408783929525319088796528846074300298169095832008090348765071819903592259054539824107548396054831620156065397353564314075832606210002977414031807190802036614711962753045459302055995482711202476264913729001053742381513627967237847564879310450296522656150932190587089497405772515463146242994444774104882568126760201438615070455178021939652629567700369720831400945670155611556079874020063191648365703561825491872933011142654327815258659117050096588380898686058800908707607049137007238452589439126294577306523377835567636783270433931969907155243881650213552971700040639102264289018157628681046401752955986797933218"
],
[
"date_of_birth",
"1622036361531601912251084820418702891601047782637625175138825572605733390657370425908276847701537598980273604382070456587845182200911550410496021112938116817469328122740343465842145517523068426330797102857174680217730742636280962702678214012212055179781058935253589973057993182294325777377224183992603970408737848265608557819777659529146029917384032844531408647389643826506797896986046661457552175339113532176938328464383201000987343263429069705023059141319585205354277570075181730250883786462786446385160285106726367318312569623394375087504400808279887917603118803819491422372508163349572000020578024494244592303918714890726682610072788038285788003590191639827913464095669159219768260642494767"
],
[
"score_of_listening",
"1202043186541000077067318894665944481489668135022134314443404430396286899460712716296756410314379809012416941049287328163346631773596012029555142378784580119596344455118735926511923407535605952885020325475956351925453264790226559686460721445639509824176151295241844261424864916894010262080314423453156496740761901948323994732613276093756472383348333300782668595685697525956942522257006337554210743319850506407215432626560027267548352737536010704228980076926718519569644900600383189049477625864687011926440746320618810644754245154650520218349376058025805455653220023443923915170028308491915730954834751706334279481947387284970643049438626372659069200620136961620807736320266508935608778881128405"
],
[
"master_secret",
"75058462139856704125654397494254199874577168133517578504814054588705403376146531180516305111045748586657850639948462898548309628681224543786671184769254238939580650621034360364097978468638962680004448821823177525719718499766886648783478506991347684473040764192386010504203539146018733495985123079975653588128984124853671845331254670474499065010197308533728047777092359450483262763540721978696281706440363534215729437045900413478850968906786814103808519025729060888101082671144601319882098425427523076467076301770059255834581962164015738488788727123256278289240699704717979862034267754935352706234615203335975444162190665784096850688706854431204623058176886385373730593367560712415851290873213"
]
]
}
},
"initiator":"external",
"state":"credential_issued",
"role":"issuer",
"created_at":"2021-08-06 04:43:14.481031Z",
"updated_at":"2021-08-06 04:43:36.413531Z",
"connection_id":"d57cee53-6d64-444d-aa27-faec84d25c46",
"auto_remove":true,
"revocation_id":"13",
"credential_proposal_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id":"915f582a-1703-404d-976a-3a7fdd50ac1f",
"comment":"JJ Test",
"credential_proposal":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":""
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":""
},
{
"name":"registration_number",
"value":""
},
{
"name":"score_of_listening",
"value":"401"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
},
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd"
},
"credential":{
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"rev_reg_id":"DrLbXFSao4Vo8gMfjxPxU1:4:DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd:CL_ACCUM:0fb34de2-af15-4a12-96b4-617df0604620"
},
"credential_request":{
"prover_did":"97tE6e4v2K4vu1qjTWCFNg",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"blinded_ms":{
"u":"46831997328364301643560418398490601107404402418858671578137178928437446873320264586769819734807592006981843643797048636176545942127626113581637633992678985809986539645073812116060735925040113989648014245325647116102311574929207191431153445351031881214362589607267342496329275279987379019841630697479605548573417452012941350282137790586135125417975457165516639878476191673523942783822974022772301207764127613893393119636018290950386848847603439063968839433929801323062062302134399119778461191205998350172502435589826107416478327124481726806932655767216483793975040135290729197346256729889112751201367369575399155096029",
"ur":"1 0F8566D0279976405786E75C4A6C55488578ADDAEA35B161CCA50A7C3BF45F76 1 12B89567472ECE510DF69F2E8208D4B32467740DC7942DA436BBA71E1AC385FE 2 095E45DDF417D05FB10933FFC63D474548B7FFFF7888802F07FFFFFF7D07A8A8",
"hidden_attributes":[
"master_secret"
],
"committed_attributes":{
}
},
"blinded_ms_correctness_proof":{
"c":"79491694275957467808663629857140069543040376706162470853242122646197063169925",
"v_dash_cap":"1435122002388533961027134840159500466316860333018095865228711993601047581332651750648078735798372784951671417597347488299580664488139988252974317356152922955508177537347153034916967960466880091097323588335739644113576341875606149325572872657807648450848862334571776241826695852478818185193649035809144532141522939442397385211676304172432050461183359300378609457138799743916183219947105371468310249097326871657166141245084029345180165327788167467034165019571462953242409072307876551061122242242516171023616917326212952490302476722937997150723212278225162787655593641181435922421638437076431287624156790626819428454807130945831358912551350425322605790927087848774628193538637712182142787574161794595598240100786038052508",
"m_caps":{
"master_secret":"2319623634283540032715827729851714852924001696855662216781048128776680239347185112688128861808689679482193826453156849849945078040235212522290996342499868425107046831682663417157"
},
"r_caps":{
}
},
"nonce":"629297215437572416239898"
},
"thread_id":"217c6a09-eb41-4f0e-bad2-981be4622759",
"credential_definition_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"credential_exchange_id":"2aa723e2-16f8-45ff-9c29-0b88ce6dbf09",
"topic":"issue_credential"
}
STEP 3. [필수] 발급완료 확인¶
- [Previous Condition] : topic
issue_credential, statecredential_acked - [Action] : webhook으로 전달되는 event 확인 후 발급 기록 저장
- [Development] : 폐기등을 위한 발급 정보를 기록
credential_acked webhook이 수신되면 사용자의 wallet에 증명서가 정상 발급되었음을 의미한다.
- topic :
issue_credential - state :
credential_acked
{
"revocation_id":"13",
"credential_request":{
"prover_did":"97tE6e4v2K4vu1qjTWCFNg",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"blinded_ms":{
"u":"46831997328364301643560418398490601107404402418858671578137178928437446873320264586769819734807592006981843643797048636176545942127626113581637633992678985809986539645073812116060735925040113989648014245325647116102311574929207191431153445351031881214362589607267342496329275279987379019841630697479605548573417452012941350282137790586135125417975457165516639878476191673523942783822974022772301207764127613893393119636018290950386848847603439063968839433929801323062062302134399119778461191205998350172502435589826107416478327124481726806932655767216483793975040135290729197346256729889112751201367369575399155096029",
"ur":"1 0F8566D0279976405786E75C4A6C55488578ADDAEA35B161CCA50A7C3BF45F76 1 12B89567472ECE510DF69F2E8208D4B32467740DC7942DA436BBA71E1AC385FE 2 095E45DDF417D05FB10933FFC63D474548B7FFFF7888802F07FFFFFF7D07A8A8",
"hidden_attributes":[
"master_secret"
],
"committed_attributes":{
}
},
"blinded_ms_correctness_proof":{
"c":"79491694275957467808663629857140069543040376706162470853242122646197063169925",
"v_dash_cap":"1435122002388533961027134840159500466316860333018095865228711993601047581332651750648078735798372784951671417597347488299580664488139988252974317356152922955508177537347153034916967960466880091097323588335739644113576341875606149325572872657807648450848862334571776241826695852478818185193649035809144532141522939442397385211676304172432050461183359300378609457138799743916183219947105371468310249097326871657166141245084029345180165327788167467034165019571462953242409072307876551061122242242516171023616917326212952490302476722937997150723212278225162787655593641181435922421638437076431287624156790626819428454807130945831358912551350425322605790927087848774628193538637712182142787574161794595598240100786038052508",
"m_caps":{
"master_secret":"2319623634283540032715827729851714852924001696855662216781048128776680239347185112688128861808689679482193826453156849849945078040235212522290996342499868425107046831682663417157"
},
"r_caps":{
}
},
"nonce":"629297215437572416239898"
},
"credential":{
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"rev_reg_id":"DrLbXFSao4Vo8gMfjxPxU1:4:DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd:CL_ACCUM:0fb34de2-af15-4a12-96b4-617df0604620"
},
"credential_offer_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/offer-credential",
"@id":"98b5ffd6-b7e4-4c56-a58d-68a11dc21f97",
"~thread":{
"thid":"217c6a09-eb41-4f0e-bad2-981be4622759"
},
"credential_preview":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":""
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":""
},
{
"name":"registration_number",
"value":""
},
{
"name":"score_of_listening",
"value":"401"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
},
"offers~attach":[
{
"@id":"libindy-cred-offer-0",
"mime-type":"application/json",
"data":{
"base64":"eyJzY2hlbWFfaWQiOiAiTjZyNG5Md0FrY1lVWDhjOEtiOFVmdToyOkNlcnRpZmljYXRlT2ZUT0VJQzo0LjAiLCAiY3JlZF9kZWZfaWQiOiAiRHJMYlhGU2FvNFZvOGdNZmp4UHhVMTozOkNMOjE2MTc2OTgyMzg6ODFkZjAwMTAtNjJiNC00NWIxLWJkMDAtOGQwYWQ3NDc2MmZkIiwgImtleV9jb3JyZWN0bmVzc19wcm9vZiI6IHsiYyI6ICIxMTUzMDkyMDc2NjU0Mjg0MDYxNzk1NDU5OTQzNzM5MTIxODEyODI4MzE1NDUxMTg1NDAwMTQyMjk5NjcyNzE3MDc4OTYyMjQ5MzE1NTAiLCAieHpfY2FwIjogIjEwNTU1NzI3Njk4Nj·····zA2NDQwMzYzNTM0MjE1NzI5NDM3MDQ1OTAwNDEzNDc4ODUwOTY4OTA2Nzg2ODE0MTAzODA4NTE5MDI1NzI5MDYwODg4MTAxMDgyNjcxMTQ0NjAxMzE5ODgyMDk4NDI1NDI3NTIzMDc2NDY3MDc2MzAxNzcwMDU5MjU1ODM0NTgxOTYyMTY0MDE1NzM4NDg4Nzg4NzI3MTIzMjU2Mjc4Mjg5MjQwNjk5NzA0NzE3OTc5ODYyMDM0MjY3NzU0OTM1MzUyNzA2MjM0NjE1MjAzMzM1OTc1NDQ0MTYyMTkwNjY1Nzg0MDk2ODUwNjg4NzA2ODU0NDMxMjA0NjIzMDU4MTc2ODg2Mzg1MzczNzMwNTkzMzY3NTYwNzEyNDE1ODUxMjkwODczMjEzIl1dfSwgIm5vbmNlIjogIjQwMzY5NjI4ODU0OTA3MzE0OTQ0NDMxNSJ9"
}
}
]
},
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"credential_definition_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"revoc_reg_id":"DrLbXFSao4Vo8gMfjxPxU1:4:DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd:CL_ACCUM:0fb34de2-af15-4a12-96b4-617df0604620",
"connection_id":"d57cee53-6d64-444d-aa27-faec84d25c46",
"credential_exchange_id":"2aa723e2-16f8-45ff-9c29-0b88ce6dbf09",
"created_at":"2021-08-06 04:43:14.481031Z",
"thread_id":"217c6a09-eb41-4f0e-bad2-981be4622759",
"role":"issuer",
"state":"credential_acked",
"credential_proposal_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id":"915f582a-1703-404d-976a-3a7fdd50ac1f",
"credential_proposal":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
"attributes":[
{
"name":"date_of_birth",
"value":""
},
{
"name":"date_of_test",
"value":"20190105"
},
{
"name":"english_name",
"value":""
},
{
"name":"exp_date",
"value":"20220228"
},
{
"name":"korean_name",
"value":""
},
{
"name":"registration_number",
"value":""
},
{
"name":"score_of_listening",
"value":"401"
},
{
"name":"score_of_reading",
"value":""
},
{
"name":"score_of_total",
"value":"990"
}
]
},
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"comment":"JJ Test"
},
"trace":false,
"auto_remove":true,
"auto_issue":true,
"updated_at":"2021-08-06 04:43:43.961489Z",
"initiator":"external",
"credential_offer":{
"schema_id":"N6r4nLwAkcYUX8c8Kb8Ufu:2:CertificateOfTOEIC:4.0",
"cred_def_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd",
"nonce":"403696288549073149444315",
"key_correctness_proof":{
"c":"115309207665428406179545994373912181282831545118540014229967271707896224931550",
"xz_cap":"1055572769862663463709934204601954080483898826030879595979074971004206859393782655599324140913902653650398938906681641924390794812738887811895545711063564481179172330881094952438950836326342830845967987855265191783565688169975863324545545315781669024596986257143061525264896458486625431280764566858010248626346811818332553348994255109430053940452222330296721244130109139739905819674198123825423697014194656630395527533035580919935737499589831966659250863798261759416779236747674116899991548520783007432182205649700587358695322105915051483830246135518385554263531337387626704587405669968771421880306850156048748573730575735016160622706605885093644782532647373659196784245832723085213497048989520",
"xr_cap":[
[
"date_of_test",
"1076232159249964734109718589777267462109484070440415691511826521589528195960117006601596499833881106787532908582735685947125303637779749865395973748786845381125614276185776325521284507979022202765015734531668494478627404644674922115351392810935336529179108446362157123315565260725483035159546977982636268273741134447625656913083049471163863325580545751281281707239030011491905375673521635790717301188716989419245594425667897372137887632091257692992002204353172141035532686819956655464274728888166233800730209627627333118372176190108581819028962383487619291845020994081912208148061482241150491798630105559860464292100987650906949548228012908099036234969978091590577056859814205598867632927950715"
],
[
"english_name",
"696411130939580533510436664194526819156095629287412434045238350804750458875252009159837208667096357708273898836774596569571826421416373675758153437224961347803003587328774238645279718011305234430510914339030739772141034937822610601894100092611699051587368572476378066571995197160308770830331651684157422321494210565622254936179050256196395839836450739708603193285896785801340066230480042341954666620701121906593630655998864008598194498052803215598246923716961827765415427467725639778399843178991934315901785927203964183244619307158020733817516419875099846927356800929807208713102941594049577311851970296265305274235642059800993937805593444602673622260362361553200010326744684880113343773224856"
],
[
"exp_date",
"2423650123164905529363621137809723145327867542753048760610730674284755739976356487466267577397713669927824555718078674729329822136623528495004922057741935984832762937882953798007838316207944508000224331385996443269580772498769868565007610503103086465320921094682281609628869906334746079832967350907986925385591867010527607177795249423358544981842772106056300659484323947189052758098052717291821625945625196039363888578326940371229699672363219264534873802852476718738347302929940470298789876886196910464381568220032501183416349848143988173727155194728720864205189777283305349845531272422805228252687727992182026982614462202644856280264034450814786604483296092056699991544749097728868483744446331"
],
[
"score_of_reading",
"2263886014163696590877718819103455141839764106832768596959484972522489575027017888376981568132641923366850648287840153912124367275371474769790500423524604919564238092857224278300534000897636801852705809941046581775589751860522217490645306757391328303319956054118395953114831310842809749975591660215464105580925138260233324059520052466951401028759473645982168188190176228004854475985942016309992878768801954057483746945873570295882488431031166136808624134153820634301438203715228541061843520449836633174699357693505984852565434043129482220741904454080051328338153001196670948990896588307144418334265831459502889939680312534898472645004103285632827560927171404720898851329417605453634831452105880"
],
[
"korean_name",
"1788905130111265904456574740124922396565215354204380449567575199633053127160174234740334169163533234098148466742292392674984412955928295011897914390825366883670704562244019812041523237990926471189078365848488833270311435394026181232864698108211568494413854353359501545597228323807667606753094829953660730021296029619567370219701682829655313153017527838124455789767036252178302629465507426610286364164681495353145251164557082375958197169733253633372741447430255323043278244265461826802697680565168561519779430990470463595586390531041737789913470295057104476365441293493385120339503184843302522455622801999634368420551345290270174238758437586582034974662721295675328742676255863518017012102741754"
],
[
"score_of_total",
"1131408229621120341419714362596397257437010356761970831117159479462644909092607263082728500224663287432793687206924656934623008549461292143349994965014996220549600850171347399425995731869206209723121836146291303852634119993656531379913949985367268418996941292073439590628865049264575374368331684059634116305830878007505464481589097524377731105590524099461218975426677127234408701159721830316170789361477925525097080753114516789767813128041847397430523163733871008006318000394251620704007023311886686489213855362287012519524345918971605022062755150869511036027385123217644754740517125140618879286637752303249386621450313840810601389526460114307239254509987725573400448400489937628720343209395089"
],
[
"registration_number",
"2247001418347582270988729853798416644319473907456862200810923148032570724445989049467408783929525319088796528846074300298169095832008090348765071819903592259054539824107548396054831620156065397353564314075832606210002977414031807190802036614711962753045459302055995482711202476264913729001053742381513627967237847564879310450296522656150932190587089497405772515463146242994444774104882568126760201438615070455178021939652629567700369720831400945670155611556079874020063191648365703561825491872933011142654327815258659117050096588380898686058800908707607049137007238452589439126294577306523377835567636783270433931969907155243881650213552971700040639102264289018157628681046401752955986797933218"
],
[
"date_of_birth",
"1622036361531601912251084820418702891601047782637625175138825572605733390657370425908276847701537598980273604382070456587845182200911550410496021112938116817469328122740343465842145517523068426330797102857174680217730742636280962702678214012212055179781058935253589973057993182294325777377224183992603970408737848265608557819777659529146029917384032844531408647389643826506797896986046661457552175339113532176938328464383201000987343263429069705023059141319585205354277570075181730250883786462786446385160285106726367318312569623394375087504400808279887917603118803819491422372508163349572000020578024494244592303918714890726682610072788038285788003590191639827913464095669159219768260642494767"
],
[
"score_of_listening",
"1202043186541000077067318894665944481489668135022134314443404430396286899460712716296756410314379809012416941049287328163346631773596012029555142378784580119596344455118735926511923407535605952885020325475956351925453264790226559686460721445639509824176151295241844261424864916894010262080314423453156496740761901948323994732613276093756472383348333300782668595685697525956942522257006337554210743319850506407215432626560027267548352737536010704228980076926718519569644900600383189049477625864687011926440746320618810644754245154650520218349376058025805455653220023443923915170028308491915730954834751706334279481947387284970643049438626372659069200620136961620807736320266508935608778881128405"
],
[
"master_secret",
"75058462139856704125654397494254199874577168133517578504814054588705403376146531180516305111045748586657850639948462898548309628681224543786671184769254238939580650621034360364097978468638962680004448821823177525719718499766886648783478506991347684473040764192386010504203539146018733495985123079975653588128984124853671845331254670474499065010197308533728047777092359450483262763540721978696281706440363534215729437045900413478850968906786814103808519025729060888101082671144601319882098425427523076467076301770059255834581962164015738488788727123256278289240699704717979862034267754935352706234615203335975444162190665784096850688706854431204623058176886385373730593367560712415851290873213"
]
]
}
},
"topic":"issue_credential"
}
Revocation 사용을 위해서는 아래 [Option] 내용을 확인하고 추가 구현 필요함
[참고] 폐기(Revocation) 처리를 위한 정보 기록
기한만료, 자격증명상실등의 이유로 증명서(VC)의 폐기할 경우를 대비하여 topic:issue_credential, state:credential_acked 으로 전달된 event 중 폐기에 필요한 필수 3가지 값을 기록해야 함.
만약 김증명에게 VC를 발행했다면 아래 예시와 같이 기록 필요
- credential_exchange_id
- rev_reg_id
- revocation_id
-
발급내역 저장을 위한 예시
항목 예제 내용 기관 unique id 김증명 CI 혹은 connection_id등 기관에서 사용하는 고유의 구분값 rev_reg_id DrLbXFSao4Vo8gMfjxPxU1:4:DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd:CL_ACCUM:0fb34de2-af15-4a12-96b4-617df0604620 revocation_id 13 credential_exchange_id 2aa723e2-16f8-45ff-9c29-0b88ce6dbf09
Revocation(폐기) API 상세 동작 방법은 Revocation page 별도 가이드 참조
[참고] 발급 취소 요청¶
- [Previous Condition] : topic
issue_credential, stateoffer_sent - [Action] : 증명서 발급 취소
- [Development] : 발급 취소 API 요청
증명서 발행 중 승인이 안된 사용자 이거나, 권한이 없는 사용자로 확인되어 발급 불가능하거나 반려를 해야하면 해당 API로 발급과정을 취소하고 사용자에게 정보를 전달한다. 폐기된 증명서는 사용자에게 폐기 되었다고 표시가 되고, 검증이 불가능 하다.
warning
앱의 비정상 종료, 네트워크 장애등으로 STEP 1 증명서 발행요청 이후 STEP 3이 2분 이내 완료가 되지 않으면, 해당 API로 발급을 취소하고 결제가 완료된 유료 증명서는 환불을 진행해야 한다
Method and Resource¶
POST /issue-credential/records/{cred_ex_id}/problem-report Holder 에게 Problem Report 전송
-
Swagger Document
Parameters¶
-
Query Parameters
KEY Value Required Description
-
Path Variables
KEY Value Required Description cred_ex_id 3fa85f64-5717-xxxx-xxxx-2c963f66afa6 O 발급과정 중 받은 ID -
Body
Parameter content type
application/json
Request Example¶
- Curl
curl --location --request POST 'https://dev-console.myinitial.io/agent/api/issue-credential/records/3fa85f64-5717-xxxx-xxxx-2c963f66afa6/problem-report' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer 49fxxc85-xxxx-xxxx-xxxx-75d4xxb01885' \
--data-raw '{
"description": "유효하지 않은 노인일자리증명 발급요청 입니다."
}'
Response example¶
- Response body
Webhook example¶
{
"credential_exchange_id":"1f9dfa10-66af-48d7-8da4-4dab3bef1f95",
"error_msg":"created problem report: 유효하지 않은 노인일자리증명 발급요청 입니다.",
"created_at":"2021-12-17T05:18:34.939394Z",
"credential_proposal_dict":{
"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
"@id":"54c0fc0f-242e-4f6f-8ef2-4c97c0d037ba",
"cred_def_id":"ENszK15TbVGazfFn3VJFXC:3:CL:1593153360:f7f772a2-1135-4965-88ec-4453adaf92ce"
},
"auto_remove":true,
"trace":false,
"initiator":"external",
"role":"issuer",
"updated_at":"2021-12-17T05:18:37.781358Z",
"connection_id":"39a8f15c-62b7-4c69-8ec7-343241255aca",
"thread_id":"54c0fc0f-242e-4f6f-8ef2-4c97c0d037ba",
"auto_issue":true
}
- topic :
issue_credential>> VC 발행 요청 event - error_msg : problem report
Holder App 에게는 아래 message 규격으로 전달 됨
did= did:ssw:TLHAXzdSfSSuvYLQwjRHE8
message= {
"@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec\/issue-credential\/1.0\/problem-report",
"@id": "95d9296b-9b56-4005-9c7b-68ac97cdb304",
"~thread": {
"thid": "162001f5-d076-476c-bea5-e32f799ac4ae"
},
"description": {
"en": "유효하지 않은 노인일자리증명 발급요청입니다.",
"code": "issuance-abandoned"
}
}

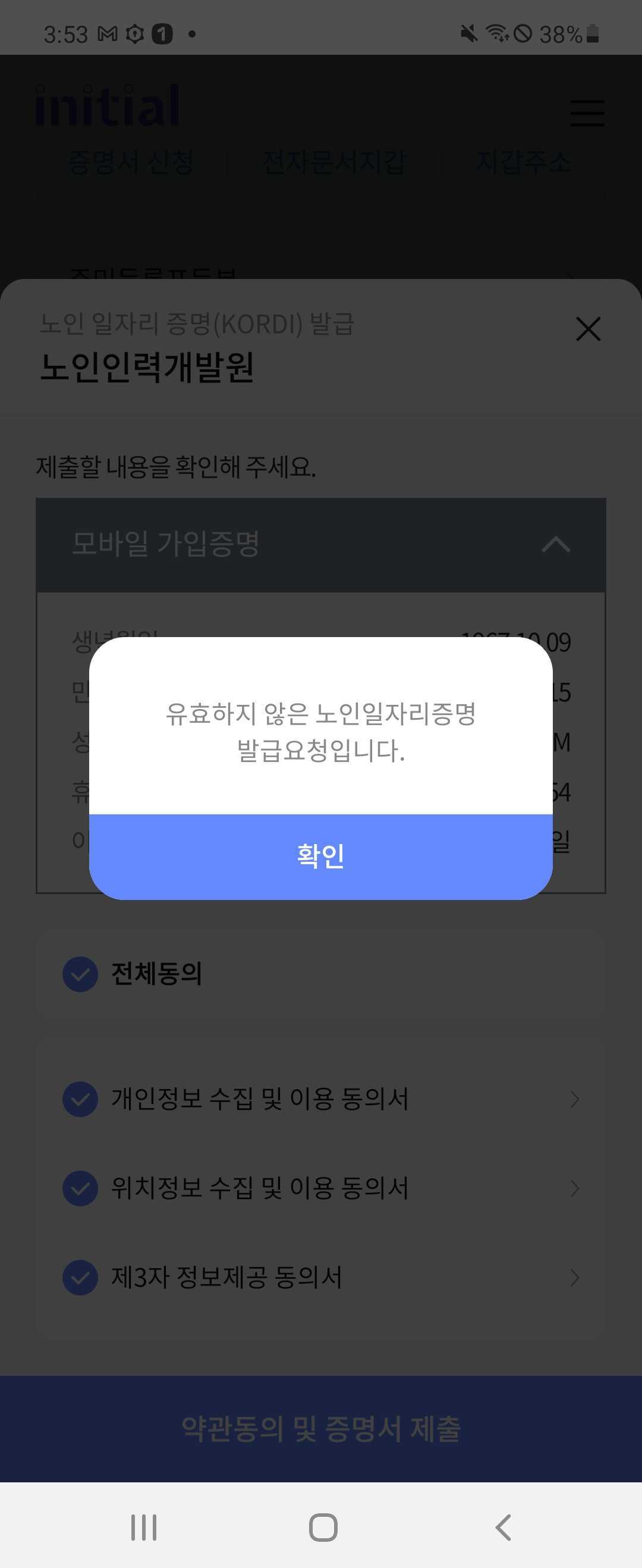

[참고] 발급 취소가 정상 처리되었을 경우 사용자에게 실제 표시되는 화면¶
- 아래와 같이 Description에 명기한 내용을 Popup 알림창으로 표시
