Web Console 개발 Guide¶

initial Platform DID Agent API 이용 개발 안내

platform arch

** 기관 참여자 구현/개발이 필요 항목 **

기관은 위 그림을 참고하여 Cloud Agent와 연동을 위한 Controller 개발이 필요합니다.

initial App과 최초 통신을 위한 연결(Connection)요청 API
Cloud Agent API 사용위한 Controller
Event 수신 Webhook controller

1. initial Console 가입/기관 생성¶

initial console 가입을 진행하고, Master 권한 신청 및 기관 생성을 진행한다.
가입 및 기관 생성

2. 기본양식 확인 및 신규 생성¶

initial Console에 접속하여 디렉토리 - 기본양식 리스트에 기관에서 사용하기 원하는 양식(Schema ID) 있는지 확인.
사용하고자 하는 양식이 있으면 그대로 사용 가능하고, 없다면 신규 생성을 요청해야 한다.
신규 양식 생성은 initial 관리자만 생성 가능함으로 Schema 등록 참고하여 신청해야 한다.

3. 발행양식 및 검증양식 생성¶

아래 링크를 참고하여 발행양식과 검증양식을 생성한다. 이부분은 최초 기관생성 단계에서 skip 가능하다.
발행양식 생성
검증양식 생성

4. API 및 Sample Code 확인¶

개발하기 전 아래 참고 사이트를 확인 한다.
Open API [Click]
Issuer/Verifier JAVA Demo 소스코드 [Click]
Issuer Demo Sequence Diagram [Click]
- 기본 동작 개념 : 연결(Connection/DID 교환) → 모바일가입증명 검증 & 신원 확인(Verify) → 신규 VC 발행(Issue)
Verifier Sequence Diagram [Click]
- 기본 동작 개념 : 연결(Connection/DID 교환) → 필요한 VC 검증 (Verify)

5. 연결 요청 API 개발¶

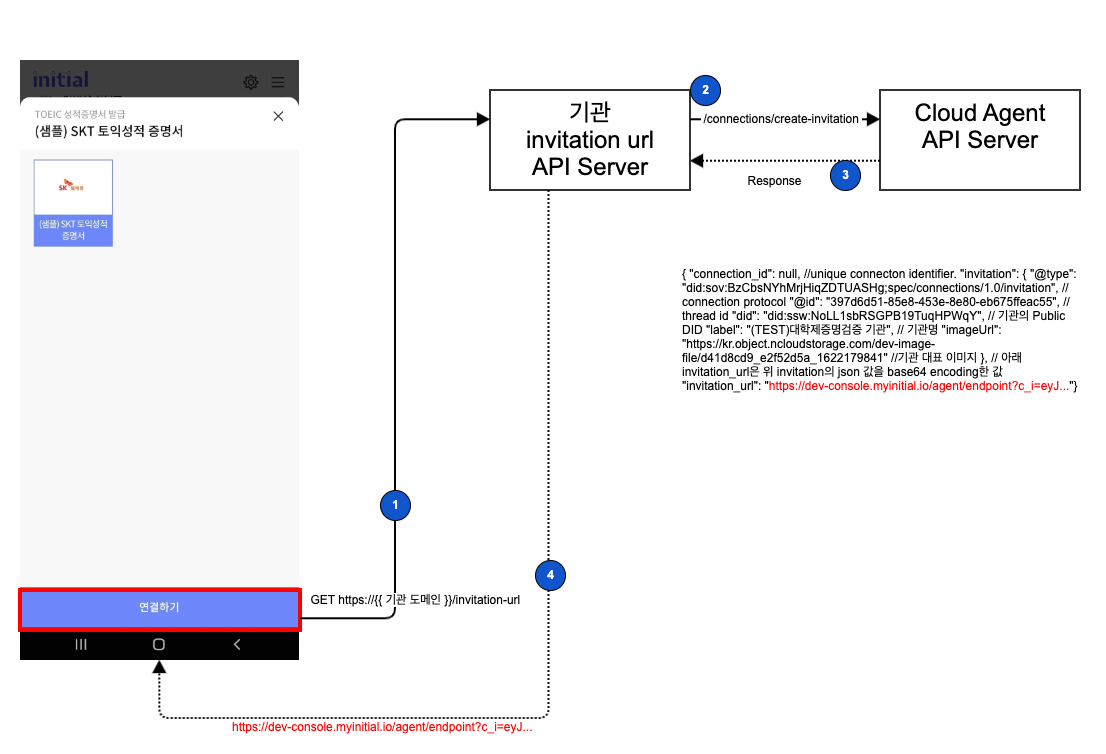

invitation flow

기관사용자는 initial App과 최초 연결(connection)을 위해 초대장(invitation)을 생성하고 전달할 수 있는 API를 제공해야 한다.
유일하게 모바일에서 접근하는 영역이므로 해당 API의 방화벽은 any open 이어야 한다.(이후에는 Cloud Agent 서버와 통신)
initial app의 기관 icon 클릭 시 invitation-url에서 초대장을 받아 연결을 시도 한다.
invitation-url API 개발 완료 후 Web Console의 '기관정보'에 입력해야 한다.
연결요청 Open API 참고 : Connection
개발 참고 JAVA 예제 : Create Invitation Url java code

** invitation_url process sequence diagram **

이미지 크게보기
invitation_url

** invitation-url API Request **

initial App에서 실제 요청하는 invitation-url http request sample

curl --location --request GET 'http://{{ 기관 도메인 }}/invitation-url'

invitation-url API 구현을 위한 JAVA sample code
- Open API의 /connections/create-invitation를 요청하고, Open API의 response중 invitation_url만 전달한다.

    public String createInvitationUrl() {
        String params = "?public=true";
        String response = client.requestPOST(agentApiUrl + "/connections/create-invitation" + params, accessToken, "{}");
        try {
            return JsonPath.read(response, "$.invitation_url");
        } catch (IllegalArgumentException e) {
            return null;
        }
    }

** invitation-url API Response **

invitation-url API Response는 아래와 같은 양식으로 제공해야 한다.

Response sample

https://dev-console.myinitial.io/agent/endpoint?c_i=eyJAdHlwZSI6ICJkaWQ6c292OkJ6Q2JzTlloTXJqSGlxWkRUVUFTSGc7c3BlYy9jb25uZWN0aW9ucy8xLjAvaW52aXRhdGlvbiIsICJAaWQiOiAiMmYyNWFhZTktNWQ4MS00MzFhLWE1NzItZDBiYzQ0Yzk5MzI2IiwgImxhYmVsIjogIlx1YjE3OFx1Yzc3OFx1Yzc3Y1x1Yzc5MFx1YjlhYyIsICJkaWQiOiAiZGlkOnNzdzpDQjFmOVdLR0FKRHdVS0NUMlhFeDdvIiwgImltYWdlVXJsIjogImh0dHBzOi8va3Iub2JqZWN0Lm5jbG91ZHN0b3JhZ2UuY29tL2Rldi1pbWFnZS1maWxlL2Q0MWQ4Y2Q5X2Q1YWQ4ZjliXzE2MTYxNDA3ODQifQ==

initial app(holder)은 response의 값을 base64 decoding 하여 연결 시작한다.

{
  "@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/connections/1.0/invitation",
  "@id":"2f25aae9-5d81-431a-a572-d0bc44c99326",
  "label":"\ub178\uc778\uc77c\uc790\ub9ac",
  "did":"did:ssw:CB1f9WKGAJDwUKCT2XEx7o",
  "imageUrl":"https://kr.object.ncloudstorage.com/dev-image-file/d41d8cd9_d5ad8f9b_1616140784"
}

invitation-url의 개발은 OPEN API의 Connection을 참고.

6. DID Agent Controller 개발¶

기관사용자는 DID Agent REST API를 사용하기 위해 controller 서버를 개발해야 한다.
Webhook 서버를 통해 전달된 Event에 따라 다음 Service Logic을 구현해야 한다.
자세한 API 내용은 initial DID Agent API Guide 및 reference code 참조
Open API 참고 : Open APIs
개발 참고 JAVA 예제 : Create Invitation Url java code

7. Webhook controller 개발¶

initial DID Platform의 DID Agent는 Event Driven(이벤트 구동형) 방식으로 기관, 사용자는 Event를 받을 수 있는 Webhook API를 개발하고 url 등록해아 한다.
처리결과를 받기 위한 기관 사용자의 Webhook URL은 기관정보에 필수 등록해야 합니다. e.g)https://domain.com/webhooks
Webhook 서버의 API Key는 보안 강화를 위한 선택 사항입니다. https://domain.com/webhooks#org-api-key 와 같이 입력하시면 header의 x-api-key 항목에 값으로 "org-api-key"를 함께 전송합니다.
Webhook 서버 예제는 아래 reference code (DID 발행/검증 Demo)에서 확인할 수 있습니다.

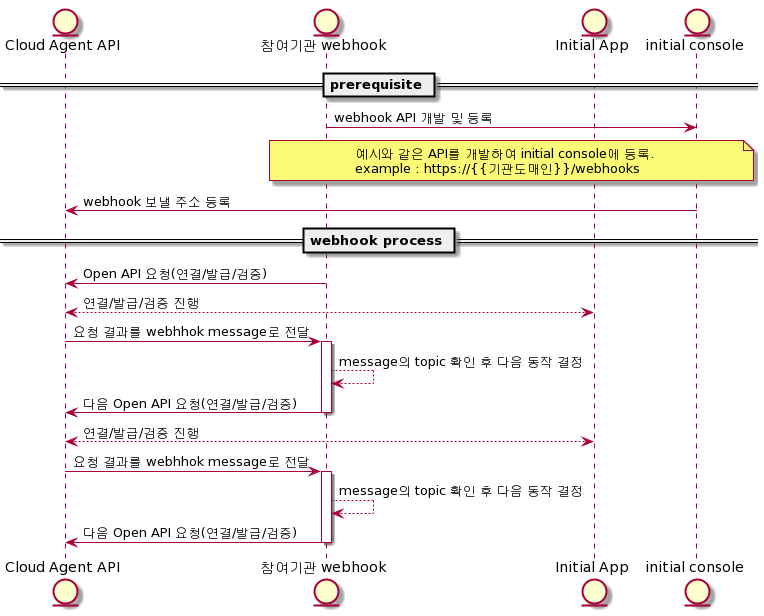

webhooks PlantUML

7-1. Webhook url API 개발

initial DID platform에서 처리 결과를 webhook으로 전달다.
기관은 Webhook으로 event를 받을 수 있는 API를 제공해야 한다.
개발 코드 참고 : https://github.com/sktston/initial-controller-java/blob/main/src/main/java/com/sktelecom/initial/controller/issuer/GlobalService.java#L643
Topic에 관한 참고 : https://ldej.nl/post/aries-cloudagent-python-webhooks

    @PostMapping(value = "/webhooks")
public ResponseEntity webhooksTopicHandler(@RequestBody String body, HttpServletRequest request) {
        //http header x-api-key 정보 확인
        String httpAddr = request.getRemoteAddr();
        String apiKey = request.getHeader("x-api-key");

        // api key check
        if(!apiKey.equals(xApiKey)){
        log.info("http header:   " + httpAddr + "   xapikey :" + apiKey + ", Unauthorized API-KEY");
        return ResponseEntity.badRequest().build();
        }
        globalService.handleEvent(body);
        return ResponseEntity.ok().build();
        }

실제 Webhook으로 전달되는 Connection Event Sample

body: {
"invitation_key": "81Ebj8szfy9mKbhRtNVypb7NJ2YmTDN7cdm8Xg8wLW7P",
"accept": "auto",
"their_role": "inviter",
"updated_at": "2021-05-14 01:19:09.319499Z",
"routing_state": "none",
"created_at": "2021-05-14 01:19:03.726010Z",
"invitation_mode": "once",
"rfc23_state": "completed",
"my_did": "Av7wYofnBi321vdgFjyLk6",
"connection_id": "e112b31d-e6b4-4b80-8a32-bcdc07f5a095",
"their_label": "agency",
"state": "active",
"their_did": "L15dj3bW7pemZg78NTM4MU",
"topic": "connections"
}

body의 topic의 state는 event 수신 후 다음 action을 위해 중요하게 활용.

7-2. Webhook Controller 개발

webhook으로 전달된 event에 따른 biz logic 처리를 위해 controller를 개발해야 한다.

- Webhook topic example¶

현재 7가지 종류의 topic이 전달 됨.

topic	state 종류	description	next action
connections	invitation request response active	연결	connection state `active` 까지 자동 진행 됨. 기관 개발자는 connection_id를 저장하고, 발행기관은 Holder로 부터 발행 요청이 올때까지 대기한다. 검증기관은 개인정보수집을 위한 동의서를 요청을 진행한다.
basicmessages	received	Message 수신 완료	message를 display 하거나, 정책에 따라 VC 발행이나 검증을 진행한다. e.g. send-offer,send-request
issue_credential	offer_sent request_received credential_issued credential_acked	발행	issue_credential state `credential_acked`까지 자동 진행 됨.
issuer_cred_rev	issued	revocation registry update	revocation 관련 정보 저장
present_proof	request_sent presentation_received verified	검증	state:verified까지 자동으로 진행. 검증 결과를 확인하거나, 필요 시 저장 하면 됨.
revocation_registry	posted	RevocationRegistry record 생성 완료	블록체인에 자동으로 생성 완료. 개발자는 별도로 진행할 필요 없음.
problem_report			에러 확인

- Webhook Sample code¶

public void handleEvent(String body) {
String topic = JsonPath.read(body, "$.topic");
String state = topic.equals("problem_report") ? null : JsonPath.read(body, "$.state");
log.info("handleEvent >>> topic:" + topic + ", state:" + state + ", body:" + body);

        switch(topic) {
            case "issue_credential":
                // 1. holder 가 credential 을 요청함 -> 개인정보이용 동의 요청
                if (state.equals("proposal_received")) {
                    log.info("- Case (topic:" + topic + ", state:" + state + ") -> isValidCredentialProposal && sendAgreement");
                    String credentialProposal = JsonPath.parse((LinkedHashMap)JsonPath.read(body, "$.credential_proposal_dict")).jsonString();
                    if(isValidCredentialProposal(credentialProposal)) {
                        sendAgreement(JsonPath.read(body, "$.connection_id"));
                    }
                }
                // 4. holder 가 증명서를 정상 저장하였음 -> 완료 (revocation 은 아래 코드 참조)
                else if (state.equals("credential_acked")) {
                    log.info("- Case (topic:" + topic + ", state:" + state + ") -> credential issued successfully");
                    // TODO: should store credential_exchange_id to revoke this credential later
                    // storeCredExRecord(body);
                    if (enableRevoke) {
                        revokeCredential(JsonPath.read(body, "$.credential_exchange_id"));
                    }
                }
                break;
            case "basicmessages":
                String content = JsonPath.read(body, "$.content");
                String type = getTypeFromBasicMessage(content);
                // 2. holder 가 개인정보이용 동의를 보냄 -> 모바일 가입증명 검증 요청
                if (type != null && type.equals("initial_agreement_decision")) {
                    if (isAgreementAgreed(content)) {
                        log.info("- Case (topic:" + topic + ", state:" + state + ", type:" + type + ") -> AgreementAgreed & sendPresentationRequest");
                        sendPresentationRequest(JsonPath.read(body, "$.connection_id"));
                    }
                }
                else
                    log.warn("- Warning: Unexpected type:" + type);
                break;
            case "present_proof":
                // 3. holder 가 보낸 모바일 가입증명 검증 완료
                if (state.equals("verified")) {
                    log.info("- Case (topic:" + topic + ", state:" + state + ") -> getPresentationResult");
                    String presRequest = JsonPath.parse((LinkedHashMap)JsonPath.read(body, "$.presentation_request")).jsonString();
                    String presentation = JsonPath.parse((LinkedHashMap)JsonPath.read(body, "$.presentation")).jsonString();
                    String attrs = getPresentationResult(JsonPath.read(body, "$.verified"), presRequest, presentation);
                    if (enableWebView) {
                        // 3-1. 검증 값 정보로 발행할 증명서가 한정되지 않는 경우 추가 정보 요구
                        log.info("Web View enabled -> sendWebView");
                        sendWebView(JsonPath.read(body, "$.connection_id"), attrs, body);
                    }
                    else {
                        // 3-2. 검증 값 정보 만으로 발행할 증명서가 한정되는 경우 증명서 바로 발행
                        log.info("Web View is not used -> sendCredentialOffer");
                        sendCredentialOffer(JsonPath.read(body, "$.connection_id"), attrs, null);
                    }
                }
                break;
            case "problem_report":
                log.warn("- Case (topic:" + topic + ") -> Print body");
                log.warn("  - body:" + prettyJson(body));
                break;
            case "connections":
            case "revocation_registry":
            case "issuer_cred_rev":
                break;
            default:
                log.warn("- Warning Unexpected topic:" + topic);
        }
    }

Webhook으로 전달되는 event의 서버 log 예제

2021-05-14 10:19:02 [INFO ] [GlobalService.java]createInvitationUrl(185) : response: {"connection_id": null, "invitation": {"@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/connections/1.0/invitation", "@id": "b05616b9-cfa2-4714-b885-a95d85c24584", "imageUrl": "https://kr.object.ncloudstorage.com/dev-image-file/d41d8cd9_037d949c_1619417220", "label": "\ud14c\uc2a4\ud2b8\ud1a0\uc775\uc99d\uba85\uc11c", "did": "did:ssw:DrLbXFSao4Vo8gMfjxPxU1"}, "invitation_url": "https://dev-console.myinitial.io/agent/endpoint?c_i=eyJAdHlwZSI6ICJkaWQ6c292OkJ6Q2JzTlloTXJqSGlxWkRUVUFTSGc7c3BlYy9jb25uZWN0aW9ucy8xLjAvaW52aXRhdGlvbiIsICJAaWQiOiAiYjA1NjE2YjktY2ZhMi00NzE0LWI4ODUtYTk1ZDg1YzI0NTg0IiwgImltYWdlVXJsIjogImh0dHBzOi8va3Iub2JqZWN0Lm5jbG91ZHN0b3JhZ2UuY29tL2Rldi1pbWFnZS1maWxlL2Q0MWQ4Y2Q5XzAzN2Q5NDljXzE2MTk0MTcyMjAiLCAibGFiZWwiOiAiXHVkMTRjXHVjMmE0XHVkMmI4XHVkMWEwXHVjNzc1XHVjOTlkXHViYTg1XHVjMTFjIiwgImRpZCI6ICJkaWQ6c3N3OkRyTGJYRlNhbzRWbzhnTWZqeFB4VTEifQ=="}
2021-05-14 10:19:03 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:connections, state:request, body:{"updated_at":"2021-05-14 01:19:03.726010Z","their_did":"L15dj3bW7pemZg78NTM4MU","their_role":"inviter","rfc23_state":"request-sent","their_label":"agency","state":"request","created_at":"2021-05-14 01:19:03.726010Z","my_did":"Av7wYofnBi321vdgFjyLk6","accept":"auto","connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","invitation_key":"81Ebj8szfy9mKbhRtNVypb7NJ2YmTDN7cdm8Xg8wLW7P","routing_state":"none","invitation_mode":"once","topic":"connections"}
2021-05-14 10:19:03 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:connections, state:response, body:{"updated_at":"2021-05-14 01:19:03.796153Z","their_did":"L15dj3bW7pemZg78NTM4MU","their_role":"inviter","rfc23_state":"response-received","their_label":"agency","state":"response","created_at":"2021-05-14 01:19:03.726010Z","my_did":"Av7wYofnBi321vdgFjyLk6","accept":"auto","connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","invitation_key":"81Ebj8szfy9mKbhRtNVypb7NJ2YmTDN7cdm8Xg8wLW7P","routing_state":"none","invitation_mode":"once","topic":"connections"}
2021-05-14 10:19:09 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:connections, state:active, body:{"invitation_key":"81Ebj8szfy9mKbhRtNVypb7NJ2YmTDN7cdm8Xg8wLW7P","accept":"auto","their_role":"inviter","updated_at":"2021-05-14 01:19:09.319499Z","routing_state":"none","created_at":"2021-05-14 01:19:03.726010Z","invitation_mode":"once","rfc23_state":"completed","my_did":"Av7wYofnBi321vdgFjyLk6","connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","their_label":"agency","state":"active","their_did":"L15dj3bW7pemZg78NTM4MU","topic":"connections"}
2021-05-14 10:19:14 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:issue_credential, state:proposal_received, body:{"updated_at":"2021-05-14 01:19:14.137514Z","thread_id":"2eb92d5f-2a28-4cf0-bc09-a62f4abf1606","connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","credential_exchange_id":"c352e34b-88b9-4564-9e38-62d8f1e8f510","trace":false,"role":"issuer","state":"proposal_received","auto_issue":true,"created_at":"2021-05-14 01:19:14.137514Z","auto_remove":false,"initiator":"external","credential_proposal_dict":{"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential","@id":"2eb92d5f-2a28-4cf0-bc09-a62f4abf1606","cred_def_id":"A5EaF6CUiTquuMFysqykmY:3:CL:1614236895:tag.56.42.80"},"topic":"issue_credential"}
2021-05-14 10:19:14 [INFO ] [GlobalService.java]handleEvent(72) : - Case (topic:issue_credential, state:proposal_received) -> isValidCredentialProposal && sendAgreement
2021-05-14 10:19:14 [INFO ] [GlobalService.java]sendAgreement(219) : response: {}
2021-05-14 10:19:20 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:basicmessages, state:received, body:{"connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","message_id":"cd555104-a28d-4743-859f-085e8ab4bb0e","content":"{\"type\":\"initial_agreement_decision\",\"content\":{\"agree_yn\":\"Y\"}}","state":"received","sent_time":"2021-05-14T10:19:20.123","locale":"en","topic":"basicmessages"}
2021-05-14 10:19:20 [INFO ] [GlobalService.java]isAgreementAgreed(225) : decisionContent: {"agree_yn":"Y"}
2021-05-14 10:19:20 [INFO ] [GlobalService.java]handleEvent(95) : - Case (topic:basicmessages, state:received, type:initial_agreement_decision) -> AgreementAgreed & sendPresentationRequest
2021-05-14 10:19:20 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:present_proof, state:request_sent, body:{"initiator":"self","updated_at":"2021-05-14 01:19:20.377222Z","thread_id":"6224753f-272b-4a33-aa1a-229426fd0b7c","trace":false,"created_at":"2021-05-14 01:19:20.377222Z","presentation_request":{"name":"(샘플)SKT 모바일가입증명 검증","version":"1.0","requested_attributes":{"person_name":{"name":"person_name","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]},"mobile_num":{"name":"mobile_num","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]}},"requested_predicates":{},"nonce":"305818841731447723542848"},"presentation_exchange_id":"d7282a4c-7a1b-4c5b-a1dc-76c61d5cdfd6","presentation_request_dict":{"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/present-proof/1.0/request-presentation","@id":"6224753f-272b-4a33-aa1a-229426fd0b7c","request_presentations~attach":[{"@id":"libindy-request-presentation-0","mime-type":"application/json","data":{"base64":"eyJuYW1lIjogIihcdWMwZDhcdWQ1MGMpU0tUIFx1YmFhOFx1YmMxNFx1Yzc3Y1x1YWMwMFx1Yzc4NVx1Yzk5ZFx1YmE4NSBcdWFjODBcdWM5OWQiLCAidmVyc2lvbiI6ICIxLjAiLCAicmVxdWVzdGVkX2F0dHJpYnV0ZXMiOiB7InBlcnNvbl9uYW1lIjogeyJuYW1lIjogInBlcnNvbl9uYW1lIiwgInJlc3RyaWN0aW9ucyI6IFt7InNjaGVtYV9pZCI6ICJjVThyRXJqZ0tqOGZnbjFrVERyZW46MjpQZXJzb25JZGVudGl0eUNyZWRlbnRpYWw6MS4wIiwgImNyZWRfZGVmX2lkIjogIlRtaXNuRUFHQlBlVlZEanRBWFBkWXQ6MzpDTDowOnYwMSJ9XX0sICJtb2JpbGVfbnVtIjogeyJuYW1lIjogIm1vYmlsZV9udW0iLCAicmVzdHJpY3Rpb25zIjogW3sic2NoZW1hX2lkIjogImNVOHJFcmpnS2o4ZmduMWtURHJlbjoyOlBlcnNvbklkZW50aXR5Q3JlZGVudGlhbDoxLjAiLCAiY3JlZF9kZWZfaWQiOiAiVG1pc25FQUdCUGVWVkRqdEFYUGRZdDozOkNMOjA6djAxIn1dfX0sICJyZXF1ZXN0ZWRfcHJlZGljYXRlcyI6IHt9LCAibm9uY2UiOiAiMzA1ODE4ODQxNzMxNDQ3NzIzNTQyODQ4In0="}}],"comment":"{\"verification_template_id\":\"b43aba3a-0fb4-4a96-bfaa-9ee532b71cab\"}"},"role":"verifier","auto_present":false,"connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","state":"request_sent","topic":"present_proof"}
2021-05-14 10:19:20 [INFO ] [GlobalService.java]sendPresentationRequest(243) : response: {"thread_id":"6224753f-272b-4a33-aa1a-229426fd0b7c","trace":false,"presentation_request_dict":{"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/present-proof/1.0/request-presentation","@id":"6224753f-272b-4a33-aa1a-229426fd0b7c","request_presentations~attach":[{"@id":"libindy-request-presentation-0","mime-type":"application/json","data":{"base64":"eyJuYW1lIjogIihcdWMwZDhcdWQ1MGMpU0tUIFx1YmFhOFx1YmMxNFx1Yzc3Y1x1YWMwMFx1Yzc4NVx1Yzk5ZFx1YmE4NSBcdWFjODBcdWM5OWQiLCAidmVyc2lvbiI6ICIxLjAiLCAicmVxdWVzdGVkX2F0dHJpYnV0ZXMiOiB7InBlcnNvbl9uYW1lIjogeyJuYW1lIjogInBlcnNvbl9uYW1lIiwgInJlc3RyaWN0aW9ucyI6IFt7InNjaGVtYV9pZCI6ICJjVThyRXJqZ0tqOGZnbjFrVERyZW46MjpQZXJzb25JZGVudGl0eUNyZWRlbnRpYWw6MS4wIiwgImNyZWRfZGVmX2lkIjogIlRtaXNuRUFHQlBlVlZEanRBWFBkWXQ6MzpDTDowOnYwMSJ9XX0sICJtb2JpbGVfbnVtIjogeyJuYW1lIjogIm1vYmlsZV9udW0iLCAicmVzdHJpY3Rpb25zIjogW3sic2NoZW1hX2lkIjogImNVOHJFcmpnS2o4ZmduMWtURHJlbjoyOlBlcnNvbklkZW50aXR5Q3JlZGVudGlhbDoxLjAiLCAiY3JlZF9kZWZfaWQiOiAiVG1pc25FQUdCUGVWVkRqdEFYUGRZdDozOkNMOjA6djAxIn1dfX0sICJyZXF1ZXN0ZWRfcHJlZGljYXRlcyI6IHt9LCAibm9uY2UiOiAiMzA1ODE4ODQxNzMxNDQ3NzIzNTQyODQ4In0="}}],"comment":"{\"verification_template_id\":\"b43aba3a-0fb4-4a96-bfaa-9ee532b71cab\"}"},"role":"verifier","updated_at":"2021-05-14 01:19:20.377222Z","auto_present":false,"connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","presentation_exchange_id":"d7282a4c-7a1b-4c5b-a1dc-76c61d5cdfd6","initiator":"self","presentation_request":{"name":"(샘플)SKT 모바일가입증명 검증","version":"1.0","requested_attributes":{"person_name":{"name":"person_name","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]},"mobile_num":{"name":"mobile_num","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]}},"requested_predicates":{},"nonce":"305818841731447723542848"},"created_at":"2021-05-14 01:19:20.377222Z","state":"request_sent"}
2021-05-14 10:19:28 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:present_proof, state:presentation_received, body:{"updated_at":"2021-05-14 01:19:28.021582Z","trace":false,"presentation_request_dict":{"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/present-proof/1.0/request-presentation","@id":"6224753f-272b-4a33-aa1a-229426fd0b7c","request_presentations~attach":[{"@id":"libindy-request-presentation-0","mime-type":"application/json","data":{"base64":"eyJuYW1lIjogIihcdWMwZDhcdWQ1MGMpU0tUIFx1YmFhOFx1YmMxNFx1Yzc3Y1x1YWMwMFx1Yzc4NVx1Yzk5ZFx1YmE4NSBcdWFjODBcdWM5OWQiLCAidmVyc2lvbiI6ICIxLjAiLCAicmVxdWVzdGVkX2F0dHJpYnV0ZXMiOiB7InBlcnNvbl9uYW1lIjogeyJuYW1lIjogInBlcnNvbl9uYW1lIiwgInJlc3RyaWN0aW9ucyI6IFt7InNjaGVtYV9pZCI6ICJjVThyRXJqZ0tqOGZnbjFrVERyZW46MjpQZXJzb25JZGVudGl0eUNyZWRlbnRpYWw6MS4wIiwgImNyZWRfZGVmX2lkIjogIlRtaXNuRUFHQlBlVlZEanRBWFBkWXQ6MzpDTDowOnYwMSJ9XX0sICJtb2JpbGVfbnVtIjogeyJuYW1lIjogIm1vYmlsZV9udW0iLCAicmVzdHJpY3Rpb25zIjogW3sic2NoZW1hX2lkIjogImNVOHJFcmpnS2o4ZmduMWtURHJlbjoyOlBlcnNvbklkZW50aXR5Q3JlZGVudGlhbDoxLjAiLCAiY3JlZF9kZWZfaWQiOiAiVG1pc25FQUdCUGVWVkRqdEFYUGRZdDozOkNMOjA6djAxIn1dfX0sICJyZXF1ZXN0ZWRfcHJlZGljYXRlcyI6IHt9LCAibm9uY2UiOiAiMzA1ODE4ODQxNzMxNDQ3NzIzNTQyODQ4In0="}}],"comment":"{\"verification_template_id\":\"b43aba3a-0fb4-4a96-bfaa-9ee532b71cab\"}"},"thread_id":"6224753f-272b-4a33-aa1a-229426fd0b7c","presentation_request":{"name":"(샘플)SKT 모바일가입증명 검증","version":"1.0","requested_attributes":{"person_name":{"name":"person_name","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]},"mobile_num":{"name":"mobile_num","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]}},"requested_predicates":{},"nonce":"305818841731447723542848"},"state":"presentation_received","created_at":"2021-05-14 01:19:20.377222Z","auto_present":false,"role":"verifier","connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","presentation":{"proof":{"proofs":[{"primary_proof":{"eq_proof":{"revealed_attrs":{"mobile_num":"111444249212870126950404680205889709796474572836794180318995173744548268486974","person_name":"114735663336402277097990206158879556599192671418456242825414219721487748472651"},"a_prime":"3683472764584092812681607912146632508389234460490438513872986938389359227457527571697912423415011481707290603026073183536504898959064321248534753652558890513872467501266404442973773097960455558828142952467443348868218124114508379384450046846166248380933322519079297551737485464782621714851535614504895181246470102894607480305713005157998584694704977182114810059359369103043717130492903342482329932290860644574613672883494555521967331053116760049391530196321702427627179489894351248606661352109283839773439571266140597534627427992424735132214222558140976368445959863967953841125816911001995392780511728054147653540982","e":"8586495162176078184732817735768615101338602897803640548856471086612666686122631965051289080267873718262859855628104382170994060642167176","v":"460071280200132829727786397384992656825560982577870579830357139939599479067746202159694823746885808170987010829761000084481148746805002737173212830453473856553326741198032975173614974317590016045922162683732861340260970502198195837099911503919283124858056837750156133887535108997773591728128189796408060630910586966407618323362290344275564183269782731736477806358072879926307356955472339411937831115586038595563705764075002815653028108271812250536306762046875359105177391038985677917718879617561725542382742073590423018862491012663093199986080757501927432138144428566308720597328103012310477695117644238253706944063735749355538469145410401526175273281405160857793184696496152410630392000434069034232160470506132651982734829621748017311775020065874155954011783450195202797102308348759634853879997091269651295232183388311823571417304771668738046402795201850954606712673486156172526429587264126444478799298777691719098120676","m":{"telecom":"8592732282160645814766892310687859889460456241557417720595899686955438417799359169859555016097566395080070553662164425316288145582263303124230994338197447420504305020940223766119","ci":"13687309894784095089727692885383602638502606850267005267648365569842435806305258457008768028085576223180064084456515199288804028377045829426555863850998747404810619635882104173259","gender":"1714315235322061957020875748916995907643035936929595676183889858116065731671841007010496764707222186110330154222728660825705192984934182010906609160450362736530701258710854133591","is_foreigner":"9843060089424133166510419058520950135589584851492014822507904218376888529122092200700018672631719827962441550165456336365980166162988771060194771443787953353687485009611452124012","date_of_birth":"4451117605775022699735946045635531565876798977727419567985107871156338350288249930990131023995425754087147779353680775300097668057939895868529904790673038202187891829049366001909","master_secret":"15390490185767226262145911924585243965633626937801106461389795563676624830510765051629506327173962592330419344346228270302149849265939892642322861611656467767827560204953239051991","exp_date":"5389874029799386357241629518298436809211133616892358837966542463956364161811439542722012391834218712616356362405900578996539431047629599958467892410004653191437322386949382897086"},"m2":"11344452923137401979908196864216849773287820275733420806004208573620225698385782927152226202121267049847496201075793089455435706736393229628295729754544564301406928373211842722403"},"ge_proofs":[]},"non_revoc_proof":null}],"aggregated_proof":{"c_hash":"104973293242122961475364758468403186572074139959074286600886021938733578743132","c_list":[[29,45,192,233,52,247,76,234,4,226,59,27,68,229,91,225,136,88,125,195,115,215,206,160,229,204,16,24,15,59,231,89,255,221,153,80,62,140,30,77,5,102,104,17,189,131,196,207,76,71,234,173,44,13,78,206,121,190,251,162,193,236,165,100,253,77,120,76,60,2,79,67,35,128,218,89,189,237,244,173,128,37,201,195,223,171,47,17,35,145,86,57,195,134,148,38,114,207,160,206,37,185,9,174,79,55,1,103,227,83,57,21,116,167,53,17,38,61,251,59,3,50,236,237,31,152,196,83,120,252,69,187,102,141,245,128,35,126,136,175,65,95,181,231,32,200,189,219,82,169,153,105,243,69,69,142,111,134,229,232,37,29,4,199,167,245,16,163,49,245,0,92,250,245,181,162,131,225,130,255,39,89,134,105,10,231,73,124,39,159,206,50,250,143,18,39,254,161,205,31,117,79,121,77,47,227,222,160,233,6,225,244,249,19,67,249,186,56,212,12,2,112,134,212,237,96,118,76,175,49,217,131,125,87,72,30,192,103,150,212,65,29,238,60,225,196,62,108,114,81,187,121,192,63,156,118]]}},"requested_proof":{"revealed_attrs":{"person_name":{"sub_proof_index":0,"raw":"김증명","encoded":"114735663336402277097990206158879556599192671418456242825414219721487748472651"},"mobile_num":{"sub_proof_index":0,"raw":"01012345678","encoded":"111444249212870126950404680205889709796474572836794180318995173744548268486974"}},"self_attested_attrs":{},"unrevealed_attrs":{},"predicates":{}},"identifiers":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01","rev_reg_id":null,"timestamp":null}]},"initiator":"self","presentation_exchange_id":"d7282a4c-7a1b-4c5b-a1dc-76c61d5cdfd6","topic":"present_proof"}
2021-05-14 10:19:28 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:present_proof, state:verified, body:{"updated_at":"2021-05-14 01:19:28.158113Z","trace":false,"presentation_request_dict":{"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/present-proof/1.0/request-presentation","@id":"6224753f-272b-4a33-aa1a-229426fd0b7c","request_presentations~attach":[{"@id":"libindy-request-presentation-0","mime-type":"application/json","data":{"base64":"eyJuYW1lIjogIihcdWMwZDhcdWQ1MGMpU0tUIFx1YmFhOFx1YmMxNFx1Yzc3Y1x1YWMwMFx1Yzc4NVx1Yzk5ZFx1YmE4NSBcdWFjODBcdWM5OWQiLCAidmVyc2lvbiI6ICIxLjAiLCAicmVxdWVzdGVkX2F0dHJpYnV0ZXMiOiB7InBlcnNvbl9uYW1lIjogeyJuYW1lIjogInBlcnNvbl9uYW1lIiwgInJlc3RyaWN0aW9ucyI6IFt7InNjaGVtYV9pZCI6ICJjVThyRXJqZ0tqOGZnbjFrVERyZW46MjpQZXJzb25JZGVudGl0eUNyZWRlbnRpYWw6MS4wIiwgImNyZWRfZGVmX2lkIjogIlRtaXNuRUFHQlBlVlZEanRBWFBkWXQ6MzpDTDowOnYwMSJ9XX0sICJtb2JpbGVfbnVtIjogeyJuYW1lIjogIm1vYmlsZV9udW0iLCAicmVzdHJpY3Rpb25zIjogW3sic2NoZW1hX2lkIjogImNVOHJFcmpnS2o4ZmduMWtURHJlbjoyOlBlcnNvbklkZW50aXR5Q3JlZGVudGlhbDoxLjAiLCAiY3JlZF9kZWZfaWQiOiAiVG1pc25FQUdCUGVWVkRqdEFYUGRZdDozOkNMOjA6djAxIn1dfX0sICJyZXF1ZXN0ZWRfcHJlZGljYXRlcyI6IHt9LCAibm9uY2UiOiAiMzA1ODE4ODQxNzMxNDQ3NzIzNTQyODQ4In0="}}],"comment":"{\"verification_template_id\":\"b43aba3a-0fb4-4a96-bfaa-9ee532b71cab\"}"},"verified":"false","thread_id":"6224753f-272b-4a33-aa1a-229426fd0b7c","presentation_request":{"name":"(샘플)SKT 모바일가입증명 검증","version":"1.0","requested_attributes":{"person_name":{"name":"person_name","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]},"mobile_num":{"name":"mobile_num","restrictions":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01"}]}},"requested_predicates":{},"nonce":"305818841731447723542848"},"state":"verified","created_at":"2021-05-14 01:19:20.377222Z","auto_present":false,"role":"verifier","connection_id":"e112b31d-e6b4-4b80-8a32-bcdc07f5a095","presentation":{"proof":{"proofs":[{"primary_proof":{"eq_proof":{"revealed_attrs":{"mobile_num":"111444249212870126950404680205889709796474572836794180318995173744548268486974","person_name":"114735663336402277097990206158879556599192671418456242825414219721487748472651"},"a_prime":"3683472764584092812681607912146632508389234460490438513872986938389359227457527571697912423415011481707290603026073183536504898959064321248534753652558890513872467501266404442973773097960455558828142952467443348868218124114508379384450046846166248380933322519079297551737485464782621714851535614504895181246470102894607480305713005157998584694704977182114810059359369103043717130492903342482329932290860644574613672883494555521967331053116760049391530196321702427627179489894351248606661352109283839773439571266140597534627427992424735132214222558140976368445959863967953841125816911001995392780511728054147653540982","e":"8586495162176078184732817735768615101338602897803640548856471086612666686122631965051289080267873718262859855628104382170994060642167176","v":"460071280200132829727786397384992656825560982577870579830357139939599479067746202159694823746885808170987010829761000084481148746805002737173212830453473856553326741198032975173614974317590016045922162683732861340260970502198195837099911503919283124858056837750156133887535108997773591728128189796408060630910586966407618323362290344275564183269782731736477806358072879926307356955472339411937831115586038595563705764075002815653028108271812250536306762046875359105177391038985677917718879617561725542382742073590423018862491012663093199986080757501927432138144428566308720597328103012310477695117644238253706944063735749355538469145410401526175273281405160857793184696496152410630392000434069034232160470506132651982734829621748017311775020065874155954011783450195202797102308348759634853879997091269651295232183388311823571417304771668738046402795201850954606712673486156172526429587264126444478799298777691719098120676","m":{"telecom":"8592732282160645814766892310687859889460456241557417720595899686955438417799359169859555016097566395080070553662164425316288145582263303124230994338197447420504305020940223766119","ci":"13687309894784095089727692885383602638502606850267005267648365569842435806305258457008768028085576223180064084456515199288804028377045829426555863850998747404810619635882104173259","gender":"1714315235322061957020875748916995907643035936929595676183889858116065731671841007010496764707222186110330154222728660825705192984934182010906609160450362736530701258710854133591","is_foreigner":"9843060089424133166510419058520950135589584851492014822507904218376888529122092200700018672631719827962441550165456336365980166162988771060194771443787953353687485009611452124012","date_of_birth":"4451117605775022699735946045635531565876798977727419567985107871156338350288249930990131023995425754087147779353680775300097668057939895868529904790673038202187891829049366001909","master_secret":"15390490185767226262145911924585243965633626937801106461389795563676624830510765051629506327173962592330419344346228270302149849265939892642322861611656467767827560204953239051991","exp_date":"5389874029799386357241629518298436809211133616892358837966542463956364161811439542722012391834218712616356362405900578996539431047629599958467892410004653191437322386949382897086"},"m2":"11344452923137401979908196864216849773287820275733420806004208573620225698385782927152226202121267049847496201075793089455435706736393229628295729754544564301406928373211842722403"},"ge_proofs":[]},"non_revoc_proof":null}],"aggregated_proof":{"c_hash":"104973293242122961475364758468403186572074139959074286600886021938733578743132","c_list":[[29,45,192,233,52,247,76,234,4,226,59,27,68,229,91,225,136,88,125,195,115,215,206,160,229,204,16,24,15,59,231,89,255,221,153,80,62,140,30,77,5,102,104,17,189,131,196,207,76,71,234,173,44,13,78,206,121,190,251,162,193,236,165,100,253,77,120,76,60,2,79,67,35,128,218,89,189,237,244,173,128,37,201,195,223,171,47,17,35,145,86,57,195,134,148,38,114,207,160,206,37,185,9,174,79,55,1,103,227,83,57,21,116,167,53,17,38,61,251,59,3,50,236,237,31,152,196,83,120,252,69,187,102,141,245,128,35,126,136,175,65,95,181,231,32,200,189,219,82,169,153,105,243,69,69,142,111,134,229,232,37,29,4,199,167,245,16,163,49,245,0,92,250,245,181,162,131,225,130,255,39,89,134,105,10,231,73,124,39,159,206,50,250,143,18,39,254,161,205,31,117,79,121,77,47,227,222,160,233,6,225,244,249,19,67,249,186,56,212,12,2,112,134,212,237,96,118,76,175,49,217,131,125,87,72,30,192,103,150,212,65,29,238,60,225,196,62,108,114,81,187,121,192,63,156,118]]}},"requested_proof":{"revealed_attrs":{"person_name":{"sub_proof_index":0,"raw":"김증명","encoded":"114735663336402277097990206158879556599192671418456242825414219721487748472651"},"mobile_num":{"sub_proof_index":0,"raw":"01012345678","encoded":"111444249212870126950404680205889709796474572836794180318995173744548268486974"}},"self_attested_attrs":{},"unrevealed_attrs":{},"predicates":{}},"identifiers":[{"schema_id":"cU8rErjgKj8fgn1kTDren:2:PersonIdentityCredential:1.0","cred_def_id":"TmisnEAGBPeVVDjtAXPdYt:3:CL:0:v01","rev_reg_id":null,"timestamp":null}]},"initiator":"self","presentation_exchange_id":"d7282a4c-7a1b-4c5b-a1dc-76c61d5cdfd6","topic":"present_proof"}
2021-05-14 10:19:28 [INFO ] [GlobalService.java]handleEvent(105) : - Case (topic:present_proof, state:verified) -> getPresentationResult
2021-05-14 10:19:28 [INFO ] [GlobalService.java]getPresentationResult(248) : proof is not verified
2021-05-14 10:19:28 [INFO ] [GlobalService.java]handleEvent(116) : Web View is not used -> sendCredentialOffer
2021-05-14 10:19:28 [INFO ] [GlobalService.java]handleEvent(66) : handleEvent >>> topic:issue_credential, state:offer_sent, body:{"initiator":"self","credential_definition_id":"DrLbXFSao4Vo8gMfjxPxU1:3:CL:1617698238:81df0010-62b4-45b1-bd00-8d0ad74762fd","created_at":"2021-05-14 01:19:28.449637Z","credential_offer_dict":{"@type":"did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/offer-credential","@id":"14f835a6-9184-48b6-9957-400db54bb0d8","~thread":{},"offers~attach":[{"@id":"libindy-cred-offer-0","mime-type":"application/json","data":{"base64":"eyJzY2hlbWFfaWQiOiAiTjZyNG5Md0FrY1lVWDhjOEtiOFVmdToyOkNlcnRpZmljYXRlT2ZUT0VJQzo0LjAiLCAiY3JlZF9kZWZfaWQiOiAiRHJMYlhGU2FvNFZvOGdNZmp4UHhVMTozOkNMOjE2MTc2OTgyMzg6ODFkZjAwMTAtNjJiNC00NWIxLWJkMDAtOGQwYWQ3NDc2MmZkIiwgImtleV9jb3JyZWN0bmVzc19wcm9vZiI6IHsiYyI6ICIxMTUzMDkyMDc2NjU0Mjg0MDYxNzk1NDU5OTQzNzM5MTIxODEyODI4MzE1NDUxMTg1NDAwMTQyMjk5NjcyNzE3MDc4OTYyMjQ5MzE1NTAiLCAieHpfY2FwIjogIjEwNTU1NzI3Njk4NjI2NjM0NjM3MDk5MzQyMDQ2MDE5NTQwODA0ODM4OTg4MjYwMzA4Nzk1OTU5NzkwNzQ5NzEwMDQyMDY4NTkzOTM3ODI2NTU1OTkzMjQxNDA5MTM5MDI2NTM2NTAz

8. 개인정보 수집 및 이용 약관 개발¶

모바일 initial App에서 참여사에게 본인확인증명을 제출하기 전 개인정보 수집 및 이용 동의를 받기 위해, 동의서 전달이 필요하다.
동의서는 해당기관 법무팀의 검토를 받아야 한다.
약관/동의서 전달 상세 내용은 Verify API 참조.

9. 개발검증 방법¶

Test를 진행하기 위해 initial 개발앱을 별도로 요청해야 한다.
deeplink를 생성하여 개발하면서 검증이 가능하다 deeplink 가이드 참고

10. v2 API 전환 개발¶

처리 성능 향상된 신규 API를 제공합니다. 기존 V1 API를 사용하는 기관은 아래 방법으로 migration 이 가능합니다.

현재 Agent API version 확인¶

Web Console 로그인 - 기관 선택 - 기관관리 - 기관 정보 - Agent Service API URL 확인

v1 API 사용 기관 : https://dev-console.myinitial.io/agent/api
v2 API 사용 기관 : https://dev-console.myinitial.io/agent/v2/api

v1 API 사용시 아래와 같은 순서로 V2 전환 가능합니다.

** A. 신규 기관 생성 **

Web Console 로그인 - 기관 생성하기 클릭 [기관 생성 가이드 참고]
기존 기관과 동일한 정보를 입력합니다. (기관설명/도메인/Webhook/Invintation-url등)
기관명은 중복시 오류 발생. 꼭 기존과 다르게 설정 필요 (예:기존 SKT --> 신규 SKT v2)
Agent Version 에서 version2 선택합니다.
암호화 송수신 필요 시 선택합니다.

** B. 발행양식 생성 (발급 기관만 해당) **

Web Console 로그인 - 발행관리 - 발행 양식 생성 [발행양식 생성 가이드 참고]
기존과 동일한 기본 양식을 선택하여 생성한다
발행 양식 관리에서 신규 생성된 증명서 ID를 확인한다
Web Console 로그인 - 발행관리 - 발행 양식 관리 - 증명서 발행 설정 - 증명서 공개 클릭

** C. 검증양식 생성 **

Web Console 로그인 - 검증관리 - 검증 양식 생성 - 고급 검증양식 생성 선택 [검증양식 생성 가이드 참고]
기존과 동일한 기본 양식을 선택하여 생성한다
검증 양식 관리에서 신규 생성된 검증 양식 ID를 확인한다

** D. 현재 기관 사용 중지 (발급기관)**

기존 서버를 재사용 하기 위해서 발급을 일시 중지 합니다.(발급 기관만 해당됩니다)

initial 관리자측에 요청하여 기존 기관의 App 노출 비활성화를 요청
발급 서버 가동 중지
intitial admin에서 노출에 대한 설정 권한을 가지고 있습니다.

** E. 기존 서버에 신규 properties 값을 적용**

변경되는 값은 아래와 같습니다. 아래 정보를 적용 후 서버 재시작

Access Token
Agent Service API URL
증명서 ID(CredDefId) : 발급 기관만 해당
검증 양식 ID (verifTplId)

** F. 신규 기관 활성화 및 이름 변경**

Web Console 로그인 - 기관관리 - 기관정보에서 Console 공개 및 기관 활성화 하기
기관명은 기존과 동일하게 수정 가능 (예: SKT v2 --> SKT)

** G. App 노출 설정(발급기관)**

발급 기관만 해당됩니다.

initial 관리자측에 요청하여 신규 기관의 App 노출 활성화 합니다.
intitial admin에서 노출에 대한 설정 권한을 가지고 있습니다.

** H. 테스트 진행**

정상 동작 여부 확인
